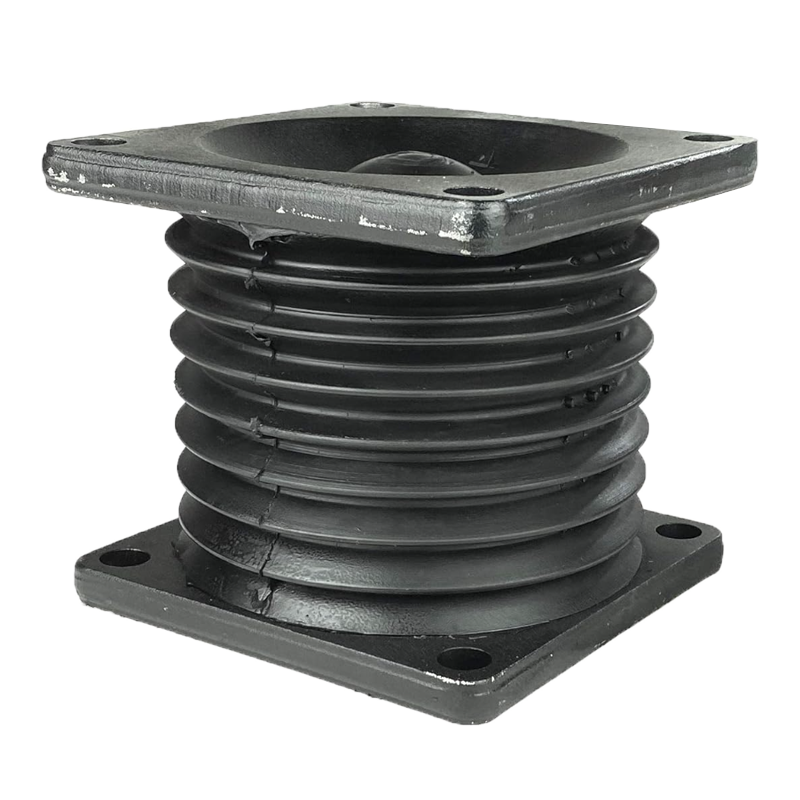

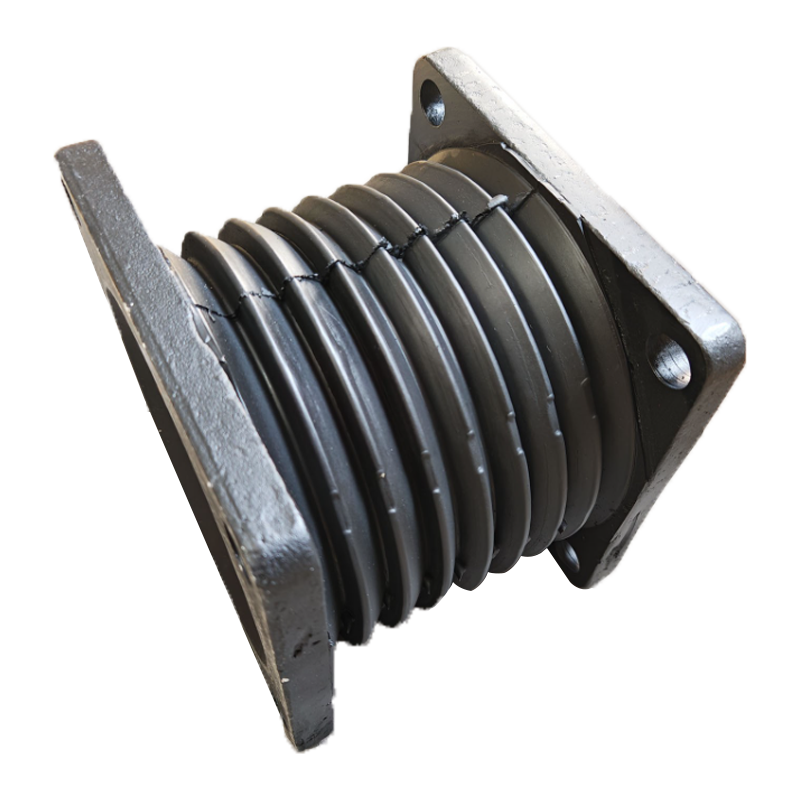

CAT OEM：2114987 Rear Suspension Mount for Articulated Trucks

Introduction

Inside every Caterpillar articulated dump truck — from the 30-tonne 735 to the 45-tonne 745C — the rear suspension assembly absorbs constant high-amplitude shocks from loaded off-highway hauling. At the heart of that assembly sits the CAT 2114987 rear suspension mount (also marked 211-4987 or cross-referenced as 1389224 / 138-9224). When this rubber-bonded mount fails, ride harshness, frame stress, and operator fatigue all increase — and unscheduled downtime follows. This article covers the engineering of the part, its OEM cross-references, common failure modes, and how procurement teams in Europe and North America can secure a reliable aftermarket supply without compromising on quality.

Technical Specification & Engineering Details

Function Within the CAT ADT Rear Suspension

The 2114987 mount is part of Caterpillar's rear suspension group with equalizer (SEBP catalogue group 376-9342). It sits between the rear bogie / equalizer beam and the main frame, isolating the chassis from vertical and lateral shock loads transferred through the walking-beam suspension. Without a healthy mount, the frame absorbs impacts directly — accelerating cracks at welded joints, loosening hardware, and shortening the life of axle housings.

Dimensional & Material Specification

Compatible Caterpillar Models

The CAT 2114987 mount fits the following articulated truck families:

• Articulated Dump Truck (ADT) — 735, 735B, 735C, 740, 740B, 740C, 740 GC, 745, 745C

• Legacy ADT — D350E II, D400E II

• Ejector Truck variants — 740, 740B

• Compatible powertrain installations — CAT 3406, 3406E, C15

Why Rubber-to-Metal Bonding Matters

A suspension mount is not a simple rubber pad. The CAT 2114987 transfers chassis weight while damping shock — this requires the rubber body to be permanently bonded to the inner and outer steel members so that load is shared, not just stacked. At Hebei Huami, every mount is vulcanized in a single-shot process: the steel substrate is shot-blasted, primer-coated with a chemical bonding agent (Chemlok-grade), then co-cured with the rubber under controlled temperature and pressure. The result is a peel strength of 8 N/mm or higher and a part that retains > 85 % of its original stiffness after 1 million fatigue cycles.

Common Failure Modes We Engineer Against

• Rubber-to-metal delamination at the bond line — eliminated by full surface activation and proper bonding agent selection

• Surface cracking from ozone attack — addressed by adding paraffin wax and antiozonant 6PPD

• Permanent set under sustained load — minimized by tightly controlled cure state and SBR/NR ratio

• Heat aging in tropical / desert climates — verified by 70 °C × 168 h aging tests per ISO 188

Frequently Asked Questions

Q1. Is your CAT 2114987 mount a direct fit, or will I need to modify the chassis?

It is a direct fit. The bolt-hole pattern, overall envelope (219.96 × 219.96 × 201.17 mm), and stiffness curve match Caterpillar's drawing for 211-4987. No machining, drilling, or shimming is required on 735 / 740 / 745 series ADTs or on D350E II / D400E II.

Q2. How long can I expect the mount to last in service?

Service life depends on payload, terrain, and operating temperature. In typical heavy-quarry ADT applications, our customers report 6,000–10,000 operating hours before replacement. We recommend inspection at every major service interval (around 2,000 hours) for signs of rubber cracking, permanent deformation > 3 mm, or any bond-line separation.

Q3. Do you support small-batch orders, or is there a minimum?

For aftermarket distributors and independent dealers, our MOQ on the 2114987 is intentionally low — typically 20 pieces — so you can validate fit and finish before scaling. For OEM tier-supplier programs, we provide PPAP-level documentation and capacity planning up to several thousand pieces per month.

Q4. How does your part compare to genuine CAT in price and quality?

Our pricing is typically 40–60 % below genuine CAT list price. On quality, we manufacture to the same dimensional drawing, use bonded rubber-to-steel construction, and validate by static stiffness testing and dynamic fatigue cycling. We do not claim to be genuine CAT — we are a transparent aftermarket alternative engineered to match OEM service intent.

Q5. What documentation do you provide for export to the EU and North America?

Each shipment includes a Certificate of Conformity, material test reports (rubber hardness, tensile, elongation, compression set), and on request a REACH / SVHC declaration and RoHS statement. We are AEO-certified and ship under EXW, FOB, CIF, or DDP Incoterms 2020 as required.

Q6. Can you offer cross-referenced parts so I can consolidate suppliers?

Yes. Beyond 2114987, we manufacture a broad portfolio of CAT ADT rubber suspension and damping parts — equalizer bushings, cab mounts, engine mounts, and stabilizer bushings. We can provide a consolidated quotation with one set of shipping documents, reducing your procurement overhead.

Q7. How are the parts packaged for long-haul container shipping?

Each mount is individually wrapped in anti-corrosion VCI film, then carton-packed with foam corner protectors. Cartons are stacked on heat-treated (ISPM 15 compliant) pallets and stretch-wrapped. We mark the OEM number, part description, batch code, and country of origin on each carton for fast customs clearance.

Q8. What is your standard production lead time?

Stock items typically ship within 7–10 working days of payment confirmation. For made-to-order specifications (alternative rubber hardness, custom marking, private-label packaging), lead time is 25–35 days. Air freight samples can be dispatched within 3 working days.

Q9. Do you offer any warranty on the aftermarket 2114987?

Yes. Our standard commercial warranty is 12 months from installation or 18 months from shipment, whichever comes first, against manufacturing and material defects. For documented field failures we provide a root-cause report — not just a credit note.

Q10. Can you support a private-label or distributor-branded program?

Yes. We support custom logo marking, distributor-specific carton artwork, barcoded part-number labels, and unique batch traceability. Many of our European and North American partners distribute our products under their own brand.
