In DAF 65, 75, 85 and CF series trucks, the cab is supported by a suspension and stabilizer system, and the DAF cab suspension bushing 1396202 is the small but critical component that keeps the driver isolated from road shock, stabilizer bar loads, and structural noise. This DAF cab bushing absorbs and dampens vibration at the cab stabilizer mounting point, protecting both driver comfort and the long-term integrity of the cab suspension. When the 1396202 bushing perishes, drivers feel knocking, rattling, and a loose cab — which is exactly why fleets and workshops treat OEM 1396202 as a high-priority replacement part.

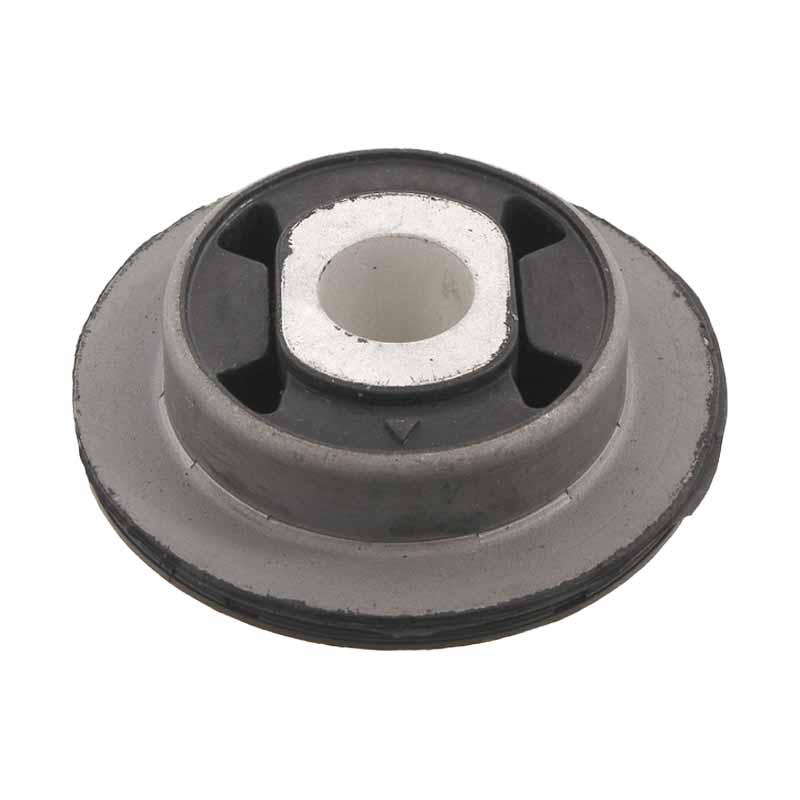

The DAF cab suspension bushing 1396202 is a rubber-to-metal bonded bush used in the cab stabilizer / anti-roll bar mounting. A vulcanized elastomer body is permanently bonded to an inner steel sleeve, allowing controlled radial and axial deflection while resisting torsional fatigue. The inner sleeve carries the mounting bolt, while the elastomer flexes under load to absorb relative movement between the cab stabilizer and its bracket.
The elastomer is a high-fatigue natural rubber (NR) or EPDM-based compound, selected for damping, resilience, and aging resistance. NR delivers excellent dynamic fatigue life and low heat build-up; EPDM options add superior ozone, weathering, and temperature resistance for trucks operating across European, North American, and CIS climates. The steel sleeve uses anti-corrosion surface treatment (phosphating or e-coating) for long service life under salt, moisture, and road debris.
Attribute | Specification |
OE Number | 1396202 |
Part Type | Cab suspension / anti-roll bar (sway bar) bushing |
Inner Diameter | 20 mm |
Outer Diameter 1 | 60 mm |
Outer Diameter 2 | 83 mm |
Height | 24 mm |
Net Weight | approx. 150 g |
Construction | Rubber-to-metal bonded |
Elastomer | High-fatigue NR / EPDM compound |
Quality System | IATF 16949 / ISO 9001 |
Note: Dimensions reflect published market data for the 1396202 reference. Always confirm against your vehicle's parts catalog before ordering.
Verified fitment includes DAF 65, 75, 85 and CF series (1992–2000), with additional listed application on Volvo FH16. Confirm the exact mounting position for your chassis before purchase.
DAF OE equivalents: 1396202 · 1298675 · 1438837
Brand | Cross Reference No. |
AUGER | 51883 |
DT Spare Parts | 5.65053 / 41076 / H725033900 |

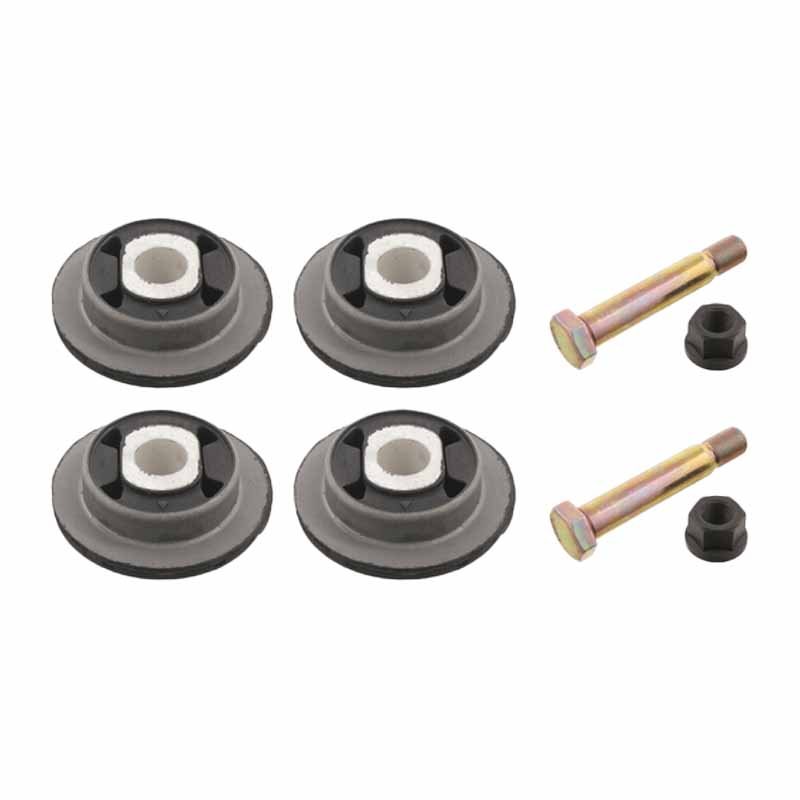

FEBI BILSTEIN | 28697 (bush) / 28738 (repair kit) |
LEMA | 1003.08 |
MEYLE | 14-34 089 0005 / 14-34 089 0009 |
SAMPA | 050.028 |
SEM LASTIK | 7995 |
ST-TEMPLIN | 09.010.0279.9 |
Q1: How do I know my DAF cab bushing 1396202 needs replacement?
Common symptoms include knocking or rattling over bumps, increased cab vibration, a 'loose' feeling in the cab, and visible cracking or separation of the rubber. If the elastomer is perished, replacement is recommended.
Q2: Is your 1396202 a direct OE replacement?
Yes. It is built to OE dimensions (ID 20mm, OD 60/83mm, height 24mm) and matches OE numbers 1396202, 1298675, and 1438837 for plug-and-play fitment. We recommend confirming the position against your parts catalog.
Q3: Which brands does 1396202 cross-reference to?
Verified cross references include Febi 28697, Sampa 050.028, Meyle 14-34 089 0005, Auger 51883, Lema 1003.08, DT 5.65053, SEM Lastik 7995, and ST-Templin 09.010.0279.9. This helps buyers source confidently across aftermarket brands.
Q4: What rubber compound do you use, and why does it matter?
We use high-fatigue NR or EPDM compounds. The compound determines damping, fatigue life, and resistance to heat, ozone, and aging — directly affecting service life and vibration isolation.
Q5: Which DAF models does it fit?
It fits DAF 65, 75, 85 and CF series (1992–2000), with an additional listed application on Volvo FH16. Always verify the mounting position for your specific chassis.
Q6: How long does the bushing last?
Service life depends on load, road conditions, and climate. Our compounds and bonding process target high-cycle durability comparable to OE, but we advise periodic inspection during routine maintenance.
Q7: What are your MOQ, lead time, and packaging?
MOQ is flexible for B2B buyers. Stock items ship quickly; mass production typically runs around 30 days. Packaging is export-grade with batch labeling for traceability. Contact us for a precise quotation.
Q8: Do you offer OEM/ODM and private-label options?
Yes. As a manufacturer we support custom compounds, dimensions, branding, and packaging for distributors and OEM programs, all under IATF 16949 / ISO 9001 quality control.
Looking for a reliable DAF cab suspension bushing 1396202 supplier with OE-grade quality and factory-direct pricing? As an IATF 16949-certified manufacturer of commercial vehicle rubber components, we support B2B aftermarket and OEM buyers across Europe, North America, and the CIS region.
Contact us today for a quotation, technical datasheet, or a free sample. Send us your OE number, target quantity, and destination — and our export team will respond promptly with pricing and lead time.
