Isuzu Torque Rod Bushing OEM 1534582931

1. Introduction

On Isuzu Giga heavy-duty trucks, the torque rod bushing is the elastic joint that ties the axle to the chassis frame. The bushing with OEM number 1534582931 (standard format 1-53458-293-1) transmits traction and braking forces, controls longitudinal and lateral axle movement, and isolates road shock and vibration. When it cracks or debonds, the truck develops axle misalignment, clunking noises, pulling to one side and uneven tire wear. For OEM buyers and aftermarket distributors in Europe and North America, a dimensionally accurate, consistently supplied replacement bushing directly affects fleet uptime and total maintenance cost.

2. Technical Details

2.1 Product Structure

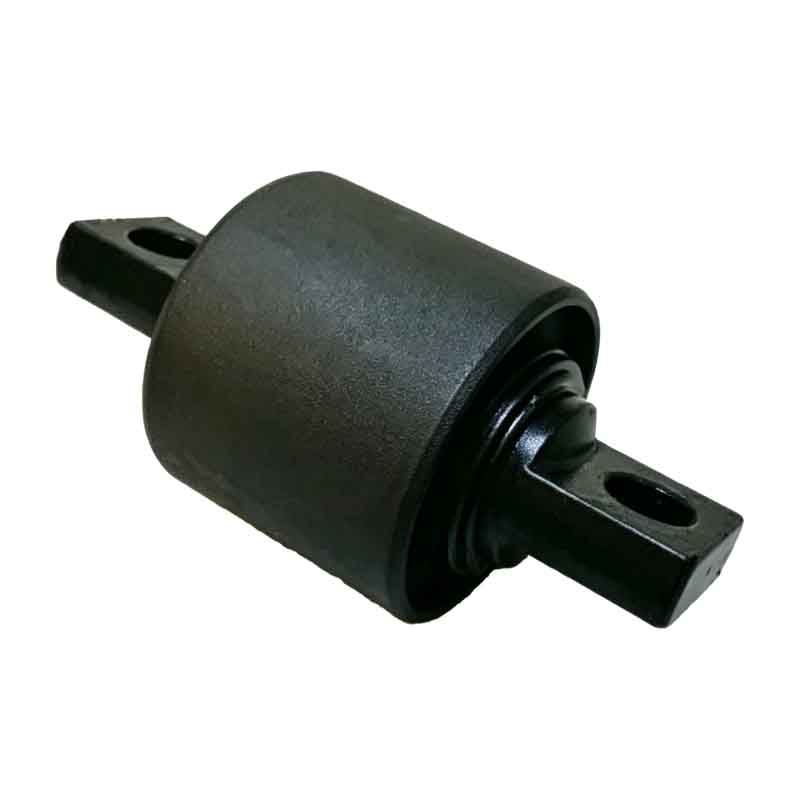

This part is a classic rubber-to-metal bonded bushing. A #45 steel inner core, phosphated or zinc-plated against corrosion, is over-molded with a high-resilience natural rubber body in a single vulcanization cycle. The rubber geometry delivers anisotropic stiffness: high radial stiffness to locate the axle precisely, and softer torsional and conical stiffness to absorb road inputs. This tuned stiffness ratio is what separates a true torque rod bushing from a generic bush.

2.2 Compound and Bonding Process

The rubber body uses a fatigue-resistant natural rubber (NR) compound, optionally blended with BR for lower heat build-up and better flex-crack resistance. Hardness is controlled at Shore A 60±5 and can be customized between 55 and 75 to your drawing. Before molding, the steel core is grit-blasted and coated with heat-cured bonding agent, achieving a rubber-to-metal peel strength of at least 8 kN/m with failure occurring in the rubber body rather than at the bond line. Production runs under an IATF 16949 quality system with per-batch checks on dimensions, hardness and bond strength.

2.3 Performance and Cross-Number Notes

The part corresponds to Isuzu genuine number 1-53458-293-1, also written as 1534582931 or 1-53458293-1 in the market, fitting Giga-platform trucks such as the CXZ, CYZ and EXZ series. Related Isuzu torque rod bushing numbers in the same family include 1-51519-113-0, 1-51519-037-1, 1-51519-054-0 and 1-53459-635-3, all of which we can supply to drawing; final interchange should be confirmed by VIN or sample measurement. Compared with generic aftermarket parts, this bushing keeps a stable static-to-dynamic stiffness ratio from -40 °C to +100 °C and shows significantly longer bench fatigue life.

Hebei Tongsource International Trade Co., Ltd. is a wholly-owned subsidiary of Hebei Huami New Material Technology Co., Ltd., a rubber damping and sealing manufacturer listed on the Beijing Stock Exchange. Tongsource handles the group's global export business, backed by more than three decades of compound development and an IATF 16949 / TÜV / AEO certified manufacturing system, serving OEM buyers and aftermarket distributors across Europe, North America and Latin America.

3. Vehicle Application List

Note: main application platforms listed; always confirm final fitment by VIN and physical comparison.

4. Cross-Reference Numbers

5. Key Specifications

6. Typical Failure Symptoms

• Clunking noise from the chassis during launch or braking — rubber body cracked or partially debonded.

• Axle misalignment causing the truck to pull to one side and require constant steering correction.

• Abnormal or saw-tooth wear on rear tires.

• Noticeably higher frame vibration under heavy load or on rough roads, reducing cab comfort.

• Visual inspection shows bulging or chunking rubber, or relative movement between core and rubber.

7. Installation Notes

• Verify OEM number 1-53458-293-1 and physical dimensions against the torque rod eye before fitting.

• Press the bushing in evenly along its axis with a proper press tool; never hammer on the rubber body or drive it in at an angle.

• Use a neutral rubber lubricant on the outer metal surface if needed; never use mineral oil or grease, which attack rubber.

• Replace bushings at both ends of the torque rod as a pair to avoid stiffness mismatch and offset loading.

• Tighten mounting bolts to specified torque only after the vehicle is on the ground with suspension at normal ride height, to prevent pre-torsion damage.

• Road-test briefly after installation, then re-check bolt torque and wheel alignment.

8. FAQ

Q1: How can I confirm that 1534582931 fits my trucks?

Send us your VIN or photos and dimensions of the old part; our engineers will verify fitment within 24 hours. The application table above is a good first check.

Q2: How does your part compare with the Isuzu genuine bushing?

We reverse-engineer from the genuine part and apply OEM-level material standards, matching dimensions, hardness and bond strength while offering more competitive pricing, with batch inspection reports available.

Q3: What is the typical service life of a torque rod bushing?

It depends on duty cycle. Under heavy loads and rough roads we recommend inspection every 150,000–200,000 km, with immediate replacement if cracking, debonding or noise appears.

Q4: Can you customize hardness or dimensions to our drawing?

Yes. Hardness can be adjusted within Shore A 55–75, and dimensions or metal structure can be developed to your drawing. Typical tooling lead time is 25–35 days.

Q5: What is your MOQ?

Trial orders of 50–100 pieces are welcome for standard items; volume orders receive tiered pricing.

Q6: What are your lead times and shipping options?

In-stock items ship within 7 days; custom orders usually take 30–45 days. We ship by sea, air or express to major ports in Europe, North America and Latin America.

Q7: Which quality documents do you provide?

Material certificates, dimensional inspection reports and rubber property reports are available with each shipment. Our plant holds IATF 16949, TÜV and AEO certifications.

Q8: Do you support neutral or private-label packaging?

Yes. Neutral packing, customer-branded color boxes and custom labels are all available for aftermarket distribution programs.

9. Summary & Request a Quote

A torque rod bushing is a small part with an outsized impact on the reliability of Isuzu Giga chassis. Choosing an IATF 16949-manufactured OEM 1534582931 bushing with documented compound and bonding performance reduces maintenance frequency and total fleet operating cost. OEM buyers and distributors are welcome to contact us for free samples, full specification sheets and tiered price lists — send your inquiry via tongsource.com or email your OEM number list to our sales team, and we will respond within 24 hours.
