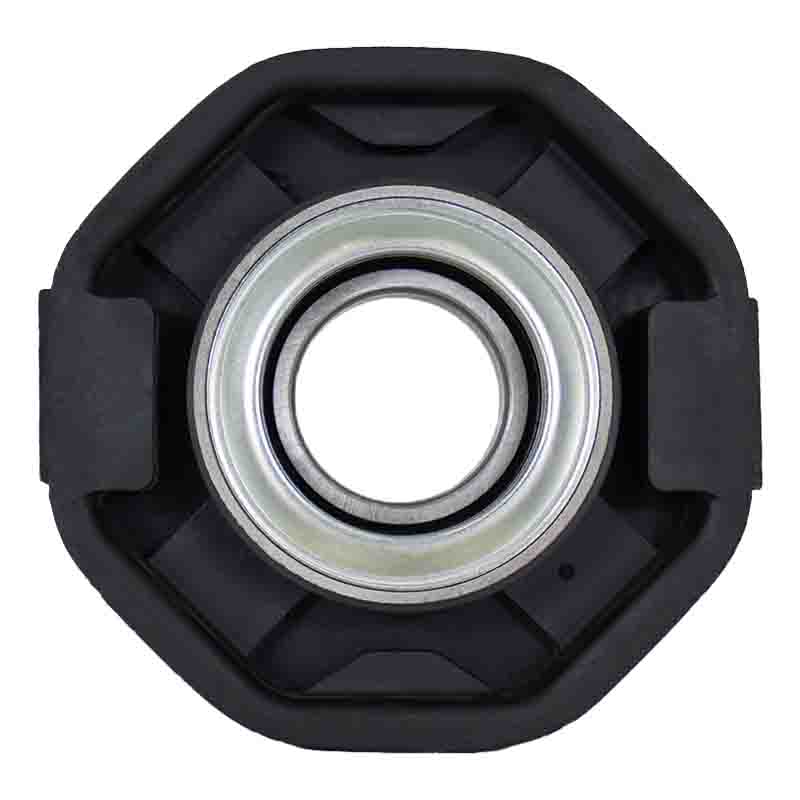

Mercedes Truck Propshaft Center Bearing OEM 3854100222

1. Introduction

On Mercedes-Benz Actros, Atego and Axor heavy trucks, the propshaft center bearing assembly (OEM 3854100222, also called the driveshaft support / mounting) is the rubber-to-metal component that supports the mid-section of a multi-piece propeller shaft, keeps it aligned and isolates driveline vibration from the chassis. Its condition directly determines driveline smoothness, cabin noise and the service life of universal joints, slip splines and the gearbox output flange.

Hebei Tongsource International Trade Co., Ltd. is the wholly-owned subsidiary of Hebei Huami New Material Technology Co., Ltd., a Beijing Stock Exchange-listed manufacturer with 20+ years of experience in rubber damping and sealing parts. We supply OEM-standard Mercedes truck propshaft center bearings (OEM 3854100222) to European and North American OEMs, wholesalers and fleet-parts buyers, with full cross-reference matching, drawing-based customization and stable batch supply.

2. Technical Details: Construction, Material and Performance

2.1 Construction

The assembly is a classic three-in-one vulcanized unit:

• Outer stamped-steel bracket: bolts to the chassis cross-member and provides the rigid mounting base; cataphoretic or Dacromet anti-corrosion coating;

• Ring-shaped rubber cushion: natural-rubber elastomer hot-vulcanized to both the bracket and the bearing seat, absorbing radial run-out and torsional vibration of the shaft;

• Sealed ball bearing: double-sealed (2RS) deep-groove ball bearing pre-packed with life-time grease — a maintenance-free design that lets the intermediate spline section rotate freely.

2.2 Material and Process

The rubber body uses a fatigue-resistant natural rubber (NR) compound controlled at 60 ± 5 Shore A, balancing support stiffness with vibration isolation. Rubber-to-metal bonding uses the Chemlok adhesive system; bond failure mode is rubber tear (R-failure), ensuring no de-bonding under long-term alternating loads. All parts are produced under IATF 16949 with full traceability from mixing to final assembly.

2.3 Performance Advantages and OE Coverage

This part corresponds to the Mercedes-Benz OE group: 385 410 0110 / 385 410 0122 / 385 410 0222 / 385 410 0922 / 385 410 1722 / 385 586 0141 (incl. A-prefix versions such as A385 410 0222). One SKU covers more than 1,100 vehicle configurations across Actros, Atego, Axor, Econic and Unimog — a genuine fast-moving reference in the European aftermarket. Compared with low-grade copies, our parts are validated to OEM drawing standards for dynamic-stiffness consistency, fatigue life (≥ 1,000,000 alternating-load cycles) and bearing seal reliability.

3. Vehicle Application List

Propshaft mounting OEM 3854100222 fits the following Mercedes-Benz commercial vehicle platforms (approx. 1,121 vehicle configurations):

4. Cross-Reference Numbers

Buyers can verify interchangeability using the following brand cross-references:

Tip: send us your VIN or a photo of the old part before ordering — our engineers will verify the OE number free of charge to avoid wrong shipments.

5. Typical Failure Symptoms

• A dull "clunk" from under the floor when pulling away or shifting gears — the shaft is contacting the frame through a collapsed cushion;

• Persistent droning / floor resonance at 60–90 km/h as the aged rubber hardens and loses isolation;

• Cyclic humming from the shaft mid-section at idle or coasting — dried grease or failed bearing seals;

• Visible rubber cracking, chunking or rubber-to-metal separation; more than 3–5 mm of vertical play at the shaft mid-point;

• Vibration that worsens under load or on grades, felt in the wheel and seat — eventually causing abnormal U-joint and spline wear.

6. Key Specification Table

Note: typical specifications shown; final dimensions per engineering drawing. Hardness and bracket hole pattern can be customized.

7. Installation Notes

• Mark the phase position of each shaft section and flange before removal, and reassemble in the same orientation to preserve dynamic balance;

• Support the propshaft with a transmission jack or straps — never let it hang by the universal joints;

• Clean the spline journal, apply a thin film of assembly grease, and press the bearing on via the inner race only — never hammer the outer race;

• Torque bracket bolts to OEM specification (typically approx. 85 N·m for M12 — always confirm in the workshop manual), and perform final tightening with the vehicle on its wheels so the rubber is not pre-twisted;

• Inspect U-joint crosses, slip splines and balance weights at the same time; replace aged parts together to prevent early failure of the new mounting;

• Road-test at 60–90 km/h after installation; re-balance the shaft if any residual vibration remains.

8. FAQ

Q1: How do I confirm 3854100222 fits my truck?

A: Send us your VIN or the OE number on the old part. This item covers A385 410 0222 and the same OE group (385 410 0110 / 0122 / 0922 / 1722, etc.). Verification is free.

Q2: Are you a factory or a trading company?

A: Hebei Tongsource International Trade Co., Ltd. is the wholly-owned export subsidiary of Hebei Huami New Material Technology Co., Ltd., a Beijing Stock Exchange-listed manufacturer — factory-direct supply with no middlemen, so both price and quality are under control.

Q3: What warranty do you offer?

A: 12 months or 100,000 km (whichever comes first) under normal installation and use, with free replacement for any confirmed quality defect.

Q4: What is your MOQ?

A: Standard MOQ is 50–100 pcs. For first cooperation we support small trial orders and free samples (freight collect) for fitment validation.

Q5: What is the lead time?

A: 15–25 days for tooled standard items; 30–35 days for customized hardness or bracket hole patterns. Sea, air and China–Europe rail freight are all supported.

Q6: Do you support neutral packing or private label (OEM branding)?

A: Yes — neutral boxes, customer-branded color boxes, custom labels and part-number printing per your catalogue are all available.

Q7: What happens if rubber hardness deviates from OEM spec?

A: Too soft, and shaft movement becomes excessive, accelerating wear; too hard, and isolation degrades, causing cabin resonance. We control hardness within the OEM window of 60 ± 5 Shore A, adjustable per your drawing.

Q8: How do you guarantee batch-to-batch consistency?

A: Under IATF 16949 we run PPAP first-article approval, per-batch hardness and bond spot checks, and 100% bearing rotation-torque inspection, with fully traceable batch records.

9. Conclusion & Call to Action

Small as it is, the propshaft center bearing is the first line of defense for driveline smoothness and safety on Mercedes trucks. Choosing a supplier with true OEM manufacturing capability, certified systems and reliable delivery is how European and North American buyers keep aftermarket quality and cost under control.

Hebei Tongsource International Trade Co., Ltd. — the wholly-owned subsidiary of Beijing Stock Exchange-listed Hebei Huami New Material Technology Co., Ltd. — is now recruiting wholesale partners, repair-chain networks and OEM project customers worldwide. Contact us today for a free sample of OEM 3854100222, an up-to-date FOB/CIF quotation and our full Mercedes truck rubber parts catalogue. Every inquiry answered within 24 hours.
