OEM: 8971874160 | Isuzu NPR Engine Mount (Front RH)

For fleet operators, service workshops, and parts distributors who rely on Isuzu light commercial trucks, engine mount failure is one of the most disruptive — and most preventable — mechanical issues on the road. The Isuzu engine mount OEM# 8971874160 (also referenced as 8-97187-416-0) is the front right rubber engine foot specifically engineered for Isuzu NPR, NPR-HD, NQR, and NRR cab-over trucks fitted with the 4HE1 (4.8L) and 4HK1 (5.2L) diesel engines from model years 1998 to 2010.

This component sits at the intersection of the powertrain and the chassis frame, absorbing torque shock and high-frequency vibration before it reaches the cab. Sourcing the right part — one that matches OEM geometry, hardness specifications, and bonding strength — is not just a matter of cost. It is a matter of vehicle safety, driver comfort, and total cost of ownership.

1. Technical Specifications & Application Guide

Parameter	Details
OEM Part Number	8971874160 / 8-97187-416-0
Supersedes	8-97161-021-0
Part Name	RUBBER; ENG FOOT, FRT (Right Side)
Compatible Models	Isuzu NPR, NPR-HD, NQR, NRR
Engine Fitment	4HE1 (4.8L), 4HK1 (5.2L) Diesel
Production Years	1998 – 2010
Net Weight	2.23 kg
HS Code	4016.99.0000
Position	Front Right (RH) — Passenger Side

2. Structure, Material & Performance Analysis

2.1 Structural Design

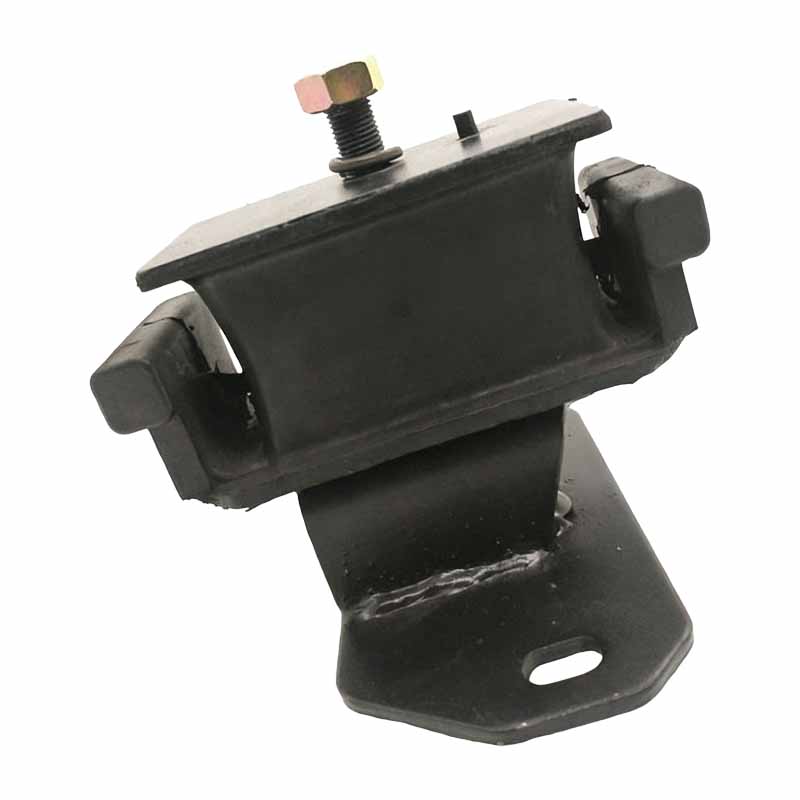

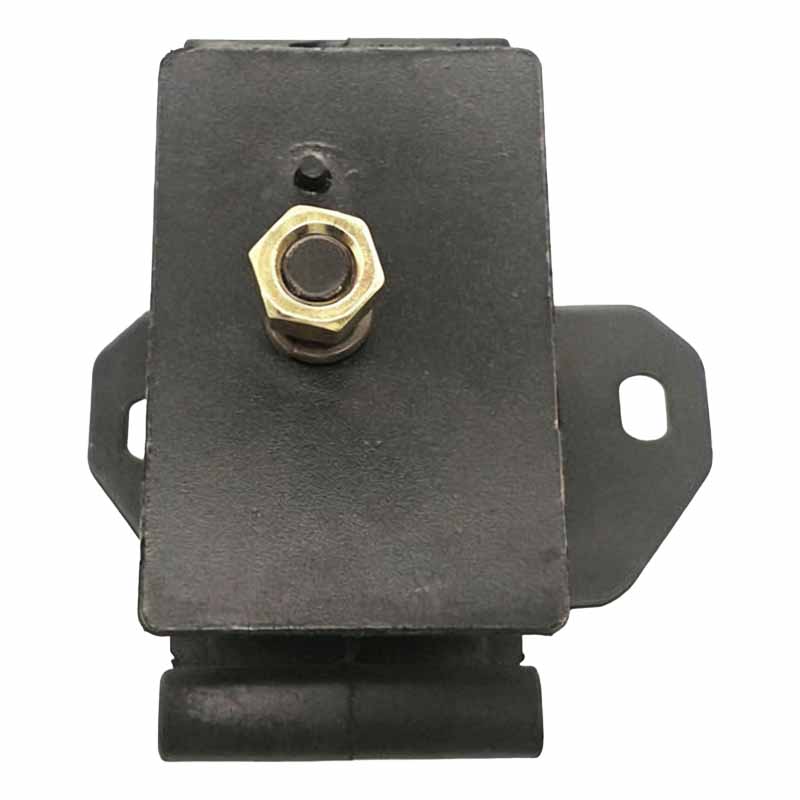

The 8971874160 engine mount is a bonded rubber-to-metal component consisting of three core elements: an upper mounting bracket (bolted to the engine block), a lower base plate (bolted to the chassis cross-member), and a natural rubber elastomeric core vulcanized between the two steel plates under heat and pressure.

The geometry is purpose-designed for the Isuzu NPR cab-over platform, where the engine sits in a forward-tilted position relative to the cab. The right-side front mount (RH) carries asymmetric load compared to the left side due to torque reaction forces from the 4HK1's inline-four configuration. The bracket orientation and rubber block profile account for this load bias, distributing stress evenly across the bonded interface.

2.2 Material Composition

The rubber compound used in this mount is formulated from a blend of Natural Rubber (NR) and Styrene Butadiene Rubber (SBR):

• Natural Rubber provides high tensile strength, excellent resilience under dynamic load, and superior low-temperature flexibility — critical for trucks operating in cold European and North American climates.

• SBR enhances aging resistance, abrasion resistance, and thermal stability, extending service life under the heat cycles of a diesel engine compartment.

• The steel hardware (upper and lower brackets) is manufactured from structural steel with heat treatment, equivalent to SAE Grade 5 hardened fasteners. Surface anti-corrosion treatment (phosphating or zinc plating) protects against moisture and road salt.

• Chemlock® bonding agent or equivalent industrial adhesive system is applied at the rubber-to-metal interface prior to vulcanization, creating a chemical bond that resists peel forces far exceeding the rubber's own shear strength.

2.3 Vibration Isolation & Durometer

The Isuzu 4HK1 diesel engine produces up to 250+ Nm of peak torque. Under urban stop-and-go driving and loaded highway operation, the engine mount experiences continuous multi-axis loading: vertical (static engine weight ~300 kg distributed across four mounts), lateral (cornering), and torsional (torque reaction on acceleration and engine braking).

The rubber hardness (Shore A Durometer) is calibrated to match Isuzu's OEM specification for this application — typically in the 50–65 Shore A range for medium-duty diesel truck mounts — achieving the optimal balance between:

• Softness (for vibration attenuation and noise isolation)

• Stiffness (for engine position control and alignment stability)

A mount that is too soft allows excessive engine movement, risking contact with adjacent components such as the radiator, exhaust manifold, and steering linkage. A mount that is too hard transmits NVH (Noise, Vibration, Harshness) directly into the cab, increasing driver fatigue.

3. Compatible Vehicle & Engine Cross-Reference

Make	Model	Year Range	Engine
Isuzu	NPR	1998–2004	4HE1 (4.8L)
Isuzu	NPR	2005–2009	4HK1 (5.2L)
Isuzu	NPR-HD	1999–2004	4HE1 (4.8L)
Isuzu	NPR-HD	2005–2007	4HK1 (5.2L)
Isuzu	NQR	1998–2004	4HE1 (4.8L)
Isuzu	NQR	2005–2007	4HK1 (5.2L)
Isuzu	NRR	2005–2007	4HK1 (5.2L)
Chevrolet	W3500/W4500/W5500 Tiltmaster	2007–2010	4HK1 (5.2L)

Note: Always verify the exact model year and engine code before ordering. The superseded part number 8-97161-021-0 is a direct fitment predecessor.

4. Why OEM-Grade Quality Matters for This Part

Engine mounts are safety-critical components. A failed mount does not simply produce noise or vibration — it can allow the engine to shift position, causing:

• Drive shaft misalignment and CV joint damage

• Exhaust manifold cracking from thermal fatigue at changed angles

• Brake line or coolant hose chafing from contact with the engine block

• Increased stress on the remaining mounts, accelerating cascade failure

Inferior aftermarket mounts — particularly those using recycled rubber compounds without proper Durometer control or inadequate rubber-to-metal bonding — typically fail within 6–12 months under commercial vehicle duty cycles. OEM-specification parts from IATF 16949-certified manufacturers are engineered for 2–4 years of service life under normal operating conditions.

5. FAQ — Frequently Asked Questions

Q1: What vehicles is OEM part number 8971874160 compatible with?

This part fits Isuzu NPR, NPR-HD, NQR, and NRR cab-over trucks with 4HE1 (4.8L) and 4HK1 (5.2L) diesel engines from model years 1998 to 2010. It also fits Chevrolet W3500, W4500, and W5500 Tiltmaster trucks with the 4HK1 engine (2007–2010). Always confirm engine code and model year before ordering.

Q2: What are the symptoms of a worn or failed Isuzu engine mount?

Common symptoms include: excessive vibration felt in the cab at idle and under load; a "clunking" or "thudding" noise when engaging the clutch or changing gears; visible engine movement when revving the engine with the hood open; misalignment of the engine relative to the transmission; and increased wear on engine hoses and brackets from contact with the chassis.

Q3: Is this an OEM part or an aftermarket replacement?

We supply high-quality aftermarket replacement parts manufactured to OEM specifications. Our production facility holds IATF 16949 certification — the international quality standard for automotive parts suppliers — ensuring that dimensional tolerances, material hardness, and bond strength match or exceed Isuzu's original specifications.

Q4: What is the minimum order quantity (MOQ)?

We accept small quantity orders for sample evaluation. Volume pricing is available for orders of 50 pieces or more, with further discounts at 200+ pieces. OEM packaging, custom branding (your logo/part number on box), and neutral packaging are all available.

Q5: What certifications does your company hold?

Hebei Huami New Material Technology Co., Ltd. holds IATF 16949, ISO 9001, ISO 14001, ISO 45001, TUV, and AEO (Authorized Economic Operator) certifications. Our AEO status enables expedited customs clearance for exports to Europe and North America, reducing lead times for our buyers.

Q6: How long is the product warranty?

Our standard product warranty is 12 months from date of shipment, covering defects in materials and workmanship under normal operating conditions. Failure caused by improper installation, overloading, or use outside the specified application is excluded.

Q7: What is the typical lead time and shipping arrangement?

Standard production and delivery lead time is 15–20 working days after receipt of deposit for in-production items. We ship by sea freight (LCL or FCL), air freight, or express courier depending on order size and urgency. We work with major freight forwarders and can provide documents for FOB, CIF, or DAP terms.

Q8: Can you supply other Isuzu rubber engine mounts or suspension components?

Yes. We manufacture a comprehensive range of Isuzu rubber components including front and rear engine mounts for NPR/NQR/NRR/ELF series, cab mounts, transmission mounts, and suspension bushings. We also supply rubber parts for Hino, Mitsubishi Fuso, and UD Trucks. Please send your parts list or OEM numbers for a complete quotation.

Q9: How do I confirm the correct part before placing an order?

Provide us with your truck's VIN, model designation, engine code, and production year. Alternatively, share the OEM part number or an image of the worn mount with its dimensions. Our technical team will confirm fitment within 24 hours.

Q10: What quality inspection process do you follow before shipment?

Each batch undergoes dimensional inspection against OEM drawings, rubber hardness (Durometer) testing, rubber-to-metal peel strength testing, and visual appearance inspection. We provide a Certificate of Conformance (COC) and can arrange third-party inspection (SGS, BV, TUV) upon request.

6. Get a Quote or Request a Sample

Ready to source Isuzu engine mount 8971874160 from a certified manufacturer? Contact Hebei Huami New Material Technology Co., Ltd. today for a fast quotation, technical data sheet, or free sample evaluation. With IATF 16949 certification, AEO export status, and over a decade of experience supplying European and North American commercial vehicle aftermarkets, we are your reliable long-term rubber components partner.
