Toyota Corolla Control Arm Bushing (OEM: 48655-12170)

1. Role of the Control Arm Bushing in Corolla Suspension

The control arm bushing is the elastic joint between the front lower control arm and the vehicle body or subframe. On the Toyota Corolla, it is one of the most important components in the front suspension system.

A high-quality Corolla suspension bushing helps the vehicle:

• Reduce vibration and noise (NVH)

• Maintain precise suspension geometry

• Improve steering feel and braking stability

• Protect the suspension structure from metal-to-metal impact

When the bushing fails, Corolla owners usually feel that the car becomes noisy, harsh, unstable and less confident to drive, even if the shock absorbers and tires are still in good condition.

1.1 Reducing Vibration and Noise (NVH)

The rubber layer of the Control Arm Bushing isolates small and high-frequency vibrations from:

• Rough road surfaces

• Speed bumps and potholes

• Engine and driveline vibration transmitted through the subframe

This significantly reduces steering wheel shake and cabin noise, and improves overall ride comfort.

1.2 Maintaining Suspension Geometry

The front lower control arm defines key wheel alignment parameters such as:

• Toe

• Camber

• Caster

The bushing allows the control arm to move within a controlled elastic range. A good bushing keeps these geometry values stable under braking, acceleration and cornering, which means:

• More stable straight-line tracking

• Less tire scrub and uneven wear

• More predictable handling

1.3 Improving Handling and Braking Stability

When the Corolla control arm bushings are in good condition:

• Braking is more stable with less nose-dive

• The vehicle does not easily pull to one side under braking

• Steering response is linear and the vehicle follows the driver’s input accurately

Once the bushings are worn, drivers often complain that the car “wanders, dives and feels loose”, especially at higher speeds.

1.4 Protecting the Suspension Structure

Without rubber bushings, the control arm and body would be rigidly connected:

• Road shocks would be directly transferred into the chassis

• Welds and mounting points could develop fatigue cracks early

• Other suspension components might fail prematurely

Timely Toyota control arm bushing replacement is a small cost that protects the entire front suspension.

---

2. OEM: 48655-12170 Product Overview

2.1 Main Application and Position

48655-12170 is a genuine Toyota front lower control arm bushing used on many Corolla and Corolla Altis models, especially in the ZZE12 generation and related platforms.

• Position:

• Front suspension, front lower control arm

• Typically the large bushing at the inner end of the arm

• Side:

• Used on both left and right sides

• Best practice is to replace both sides in pairs

2.2 Typical Model Years (Indicative)

Depending on the market, 48655-12170 is commonly used on:

• Corolla / Corolla Altis around 2001–2007 (ZZE12 series)

• Some 9th–11th generation Corolla derivatives (including certain Matrix / Pontiac Vibe platform vehicles)

Because there are many Corolla variants, the most reliable way is to confirm using:

• VIN / chassis number

• OEM part number (48655-12170)

• Sample or drawing

2.3 Related and Interchange Numbers (Placeholders)

In aftermarket catalogues, 48655-12170 may be listed together with the following part numbers (exact interchange depends on brand):

• 48655-12170 (main OEM reference)

• 48655-12180 / 48655-12190 / 48655-12200 / 48655-05060

• Associated bushings on the same arm: 48654-12120, 48654-12090, etc.

When you request a quotation, you can provide these numbers together with the Toyota Corolla model year so that Hebei Huami New Material can help you verify fitment.

---

3. Construction and Materials

3.1 Typical Rubber-Metal Structure

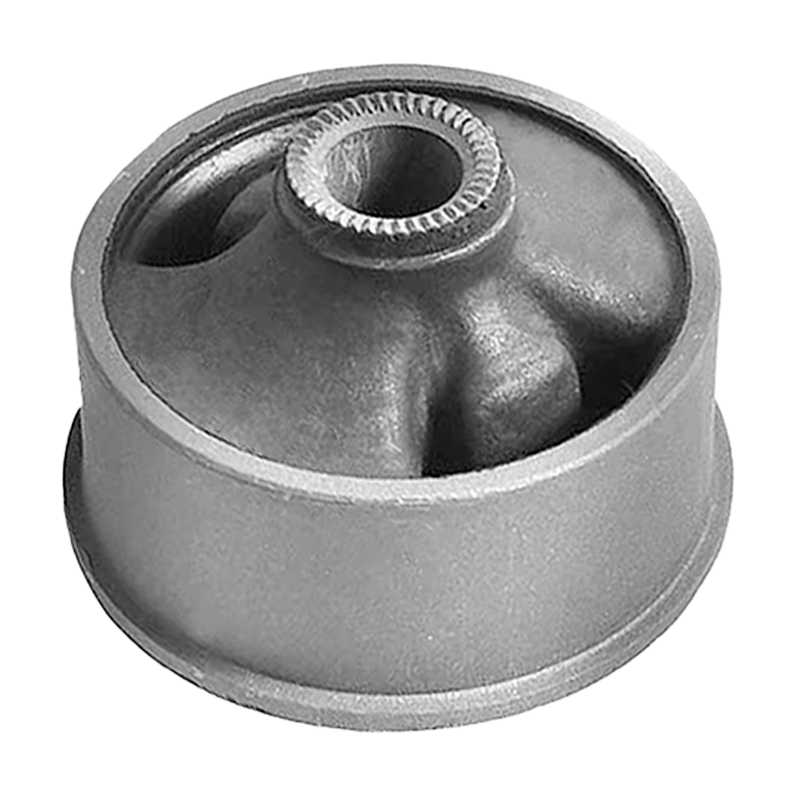

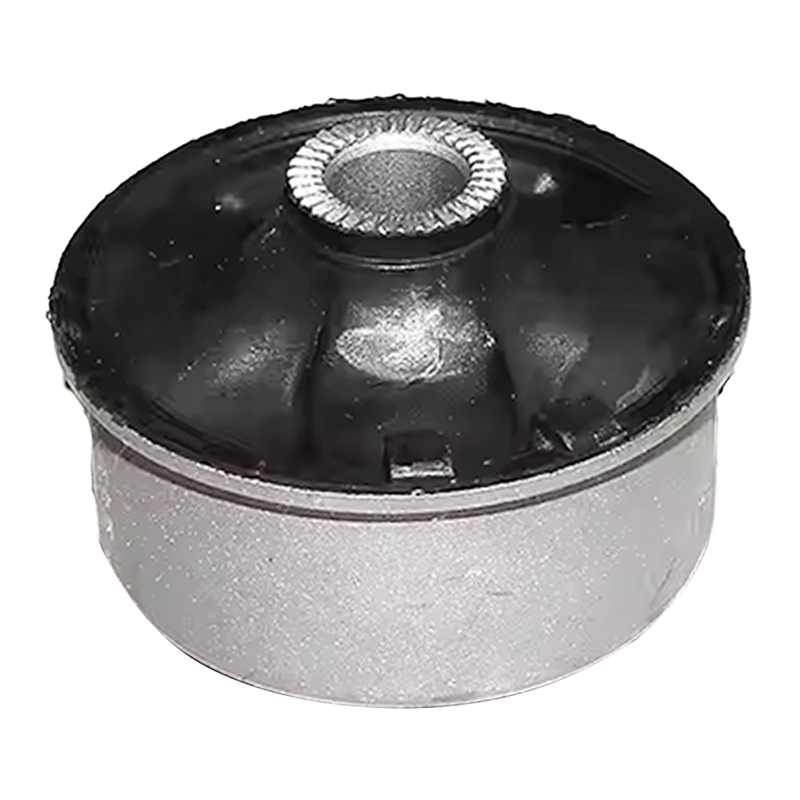

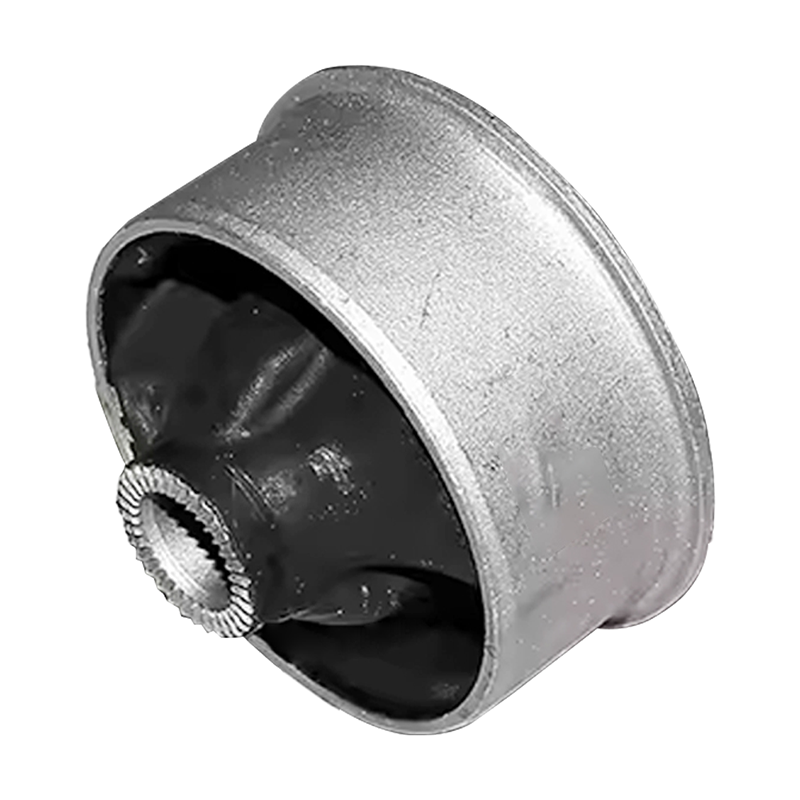

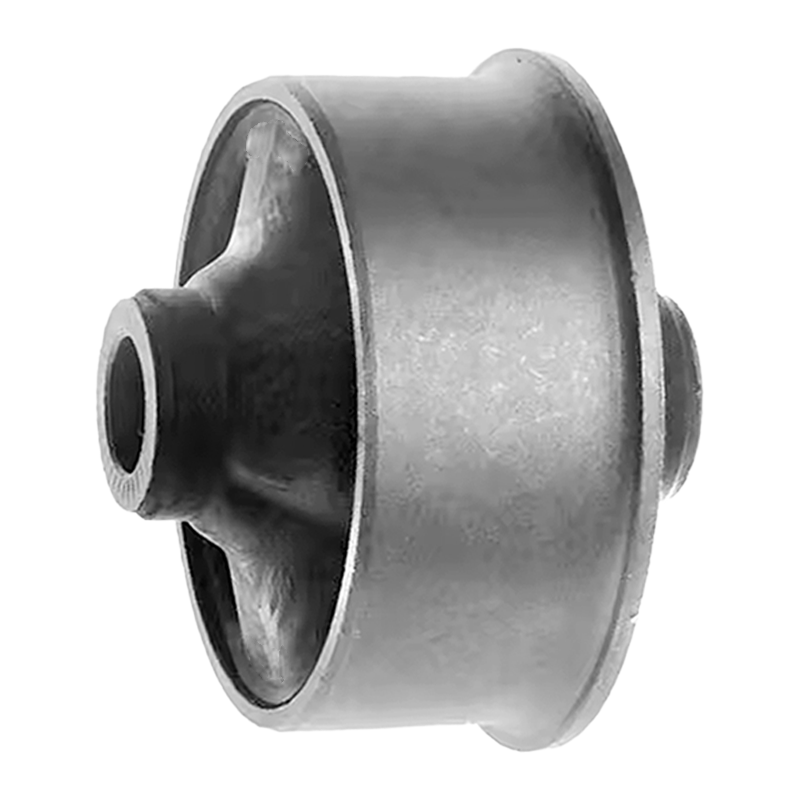

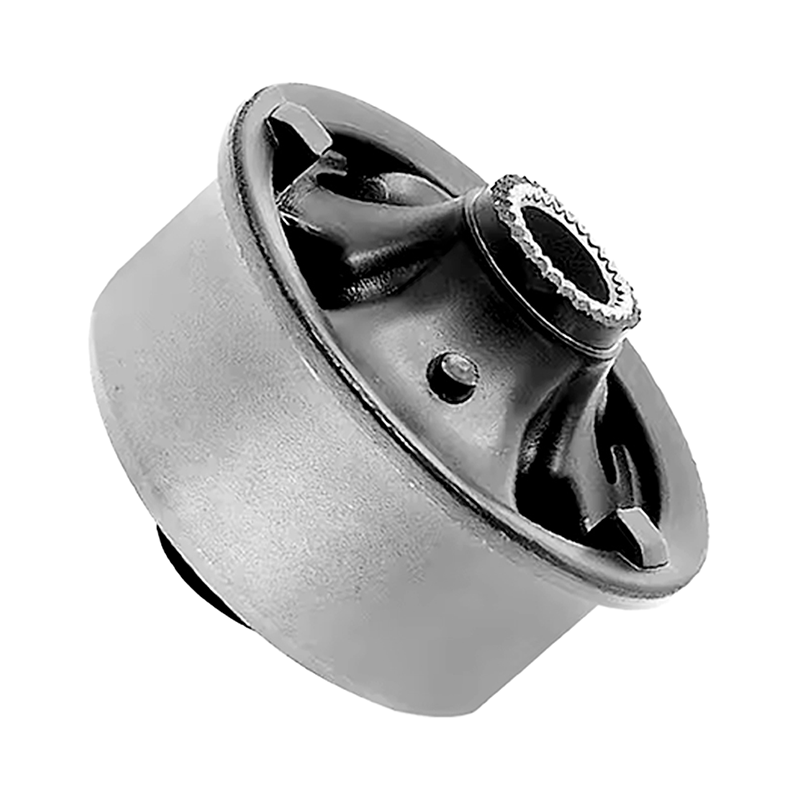

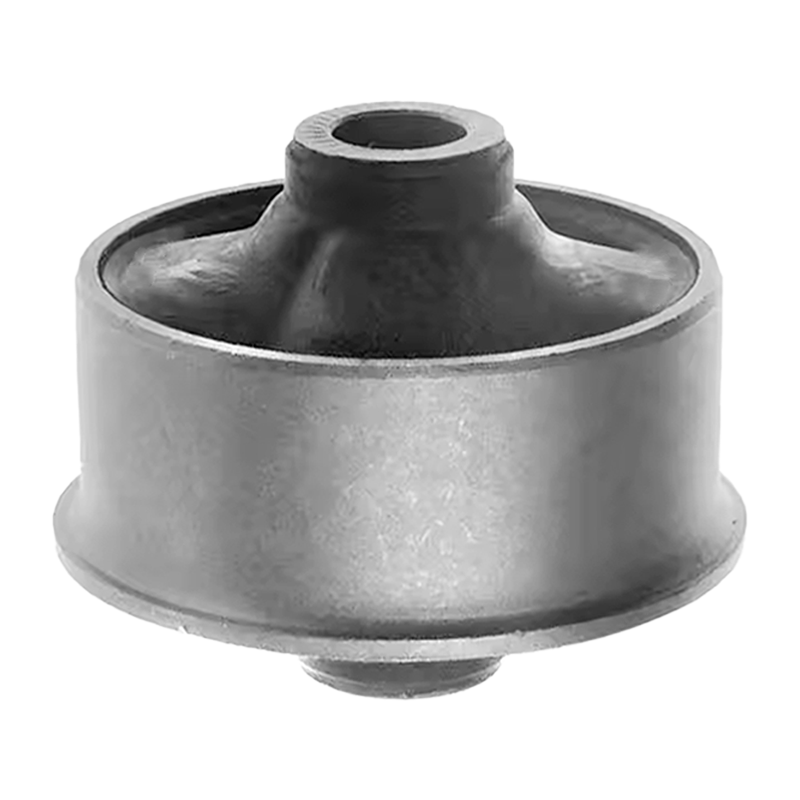

The Toyota Corolla control arm bushing 48655-12170 is a classic suspension rubber-metal bushing:

• Inner sleeve

• Steel tube that clamps to the subframe through a bolt and nut

• Precisely machined bore for accurate clamping and preload

• Outer shell

• Steel sleeve press-fitted into the lower control arm bracket

• Interference-fit prevents rotation or movement during the service life

• Rubber damping layer

• Specially shaped rubber between inner and outer sleeves

• The geometry (voids, slots, chamfers) is designed to provide softer stiffness in one direction and higher stiffness in others, balancing comfort and handling

3.2 Rubber Compounds (NR / NBR / EPDM)

Hebei Huami New Material uses self-developed rubber compounds such as:

• NR (Natural Rubber) – excellent dynamic properties and fatigue resistance, suitable for highly dynamic control arm bushings

• NBR (Nitrile Rubber) – good oil and fuel resistance, ideal for dirty under-body environments with oil and grease

• EPDM – excellent ozone and weather resistance, suitable for hot climates and vehicles parked outdoors for long periods

For Corolla suspension bushing applications, hardness is usually:

• Standard version: around 60–75 Shore A

• Reinforced version: up to 70–80 Shore A for fleets, heavy-duty or bad road conditions

3.3 Temperature, Oil, Wear and Aging Resistance

With proper compound and design, the bushing offers:

• Operating temperature: approx. –40 °C to +100 °C (short peaks higher)

• Oil resistance: stable performance even when exposed to engine oil, gear oil and chassis grease

• Wear and tear resistance: good resistance against crack growth under long-term small-amplitude cyclic deformation

• Aging resistance: improved ozone and weather resistance for long service life in real road conditions

3.4 Surface Protection of Metal Parts

To ensure long-term durability:

• Inner and outer sleeves are shot-blasted or sand-blasted for clean bonding surfaces

• Phosphate, e-coat or Zn-Ni plating is applied for enhanced corrosion resistance

• The design can be strengthened for coastal, cold or high-salt regions

3.5 Vulcanization and Bonding Technology

Hebei Huami uses a professional rubber-metal bonding system:

• Primer + cover adhesive system applied to the metal sleeves

• Hot vulcanization under precisely controlled temperature, pressure and time

• Strong chemical bonding between rubber and metal to prevent debonding

Combined with internal process control, this ensures consistent dimensional accuracy and mechanical performance from batch to batch.

---

4. Common Failures and Symptoms

When the Control Arm Bushing 48655-12170 ages or fails, typical symptoms include:

4.1 Steering Noise and Vibration

• Clunking or knocking noise when driving over speed bumps or potholes

• Creaking noise at low-speed steering

• Increased steering wheel vibration on rough roads

4.2 Nose-Dive, Pulling and Instability Under Braking

• Excessive nose-dive during hard braking

• Vehicle pulls to one side, especially in emergency braking

• Driver feels less confident; ABS intervention may feel irregular

This is usually caused by excessive movement of the lower control arm due to a weak bushing, which changes toe and caster under load.

4.3 Loose Suspension, Body Shift and Uneven Tire Wear

• Vehicle feels loose or wandering at high speed

• Lane changes feel delayed and not precise

• Tires show abnormal inner or outer shoulder wear

• Visual inspection shows cracks, missing rubber chunks or debonding between rubber and metal

4.4 How to Judge If Replacement Is Needed (Simple Checks)

For workshops and Corolla owners, a simple three-step check can be used:

1. Visual inspection

• Lift the vehicle and remove the front wheel

• Inspect the bushing with a lamp: look for visible cracks, swelling, missing rubber or off-center inner sleeve

2. Pry-bar test

• Use a pry bar to gently move the lower control arm

• If there is obvious free play or knocking at the bushing area, it is a strong sign of wear

3. Road test

• Drive over small bumps and listen for noise;

• Test braking and observe whether the vehicle pulls or wanders;

• Check for vibration or unstable steering at highway speed

If several symptoms appear together, scheduling a Toyota control arm bushing replacement is the safest choice.

---

5. Installation and Maintenance Guidelines

This is a general guide. Always follow the official Toyota service manual and use proper tools and safety equipment.

5.1 Key Points for Removing the Old Bushing

1. Park the vehicle on level ground, apply the parking brake and secure the rear wheels

2. Raise the front of the vehicle and remove the front wheel

3. Support the lower control arm with a jack or stand

4. Disconnect the ball joint and stabilizer link if necessary

5. Remove the front and rear control arm mounting bolts

6. Take the arm off the vehicle and use a hydraulic press and suitable adapters to press out the old 48655-12170 bushing

5.2 Press-In Direction and Orientation

• Clean the bore of the control arm and remove rust and old rubber

• Check orientation marks, grooves or arrows on the new bushing

• Align them with the direction specified by the workshop manual (usually along the vehicle longitudinal axis or arm axis)

• Slowly press the new bushing into the arm using proper tools, avoiding tilt and shear damage

• Confirm pressing depth and shoulder position against the sample or drawing

5.3 Bolt Torque and Static Preload

• Reinstall the control arm and only pre-tighten the bolts while the suspension is hanging

• Lower the vehicle or support the arm to the normal ride height position

• Then tighten all bolts to the specified torque:

• Front lower control arm bolts: XX–XX Nm (placeholder, refer to manual)

This procedure ensures that the rubber is in a zero-twist condition at static height, which greatly extends service life.

5.4 Common Installation Mistakes to Avoid

• Fully tightening bolts when the wheels are off the ground

• Hammering the bushing directly instead of pressing it

• Ignoring orientation marks or mixing left/right parts

• Skipping wheel alignment after the Toyota control arm bushing replacement

Doing it correctly reduces NVH, improves handling and maximizes tire life.

---

6. Hebei Huami New Material – Manufacturing Advantages

Hebei Huami New Material Technology Co., Ltd. is a leading Chinese manufacturer of special rubber and engineering plastic products, including automotive suspension bushings.

6.1 Experience and Certifications

• Founded in 1998 in Renze Economic Development Zone, Xingtai, Hebei, China

• Nearly 30 years of experience in rubber products

• Serving automotive OEMs, high-speed rail, construction machinery, petroleum equipment and aerospace industries

• More than 600 employees, including over 100 R&D staff and dozens of patents

• Certified to ISO9001, IATF16949, ISO14001, ISO45001, GJB9001C, AS9100D

• Holder of AEO advanced certification from China Customs, enabling efficient global logistics

6.2 Formula Development and Product Options

For Toyota Corolla control arm bushing 48655-12170, Hebei Huami offers:

• In-house rubber compounding for high-damping, long-life or reinforced versions

• Special formulations for cold regions, hot climates or heavy-duty use

• Custom hardness tuning and geometry optimization to match different market requirements

6.3 Precision Molds and Production Capability

• Precision mold design and in-house tool manufacturing

• Controlled tolerances for inner/outer diameters and interference fit

• Automated production lines for molding, trimming and inspection

• Strong batch-to-batch consistency for OEM and aftermarket customers

6.4 Quality and Durability Testing

• Hardness, tensile strength, tear strength and compression set tests

• Rubber-metal adhesion strength measurements

• Dynamic fatigue tests with reciprocating displacement or torsion

• Oil resistance, weather resistance, salt-spray and thermal cycling tests

Hebei Huami supports small-batch development, customized packaging and private branding, with stable lead times and reliable export experience.

---

7. Specification Template (48655-12170)

---

8. FAQ – Toyota Corolla Control Arm Bushing 48655-12170

Q1. Which Toyota Corolla models use control arm bushing 48655-12170?
A1. 48655-12170 is used on many Toyota Corolla and Corolla Altis models, especially ZZE12-series cars and some 9th–11th generation variants. Because regional applications differ, the best way is to confirm using VIN/chassis number plus the OEM part number.

---

Q2. What driving problems can a worn Corolla suspension bushing cause?
A2. A worn bushing can cause clunking noises over bumps, steering vibration, nose-dive and pulling when braking, loose or wandering feeling at high speed, and uneven tire wear. Many owners feel the car becomes less stable and less comfortable to drive.

---

Q3. How often should Toyota control arm bushing replacement be considered?
A3. For normal city driving, we recommend checking the front suspension bushings every 40,000–60,000 km. For vehicles used on poor roads or carrying heavy loads frequently, inspection every 20,000–30,000 km is advisable. Once you see cracks, debonding or excessive play, replacement is recommended.

---

Q4. What are the advantages of Hebei Huami’s 48655-12170 replacement compared to standard parts?
A4. Hebei Huami designs its Corolla suspension bushings to match the original dimensions and fitment, while using in-house rubber compounds and precision molds. This allows us to offer improved damping, better oil and weather resistance, and optional heavy-duty or long-life versions for fleets and high-mileage users.

---

Q5. How can I quickly check if my 48655-12170 bushing needs replacement?
A5. You can perform three simple checks:

1. Lift the car and visually inspect the bushing for cracks, missing rubber or an off-center inner sleeve;

2. Use a pry bar to gently move the lower control arm and feel for excessive free play or knocking;

3. Road test the car and check for noise, pulling during braking and uneven tire wear. If multiple symptoms exist, the bushing is likely worn.

---

Q6. Can Hebei Huami offer customized Corolla suspension bushings?
A6. Yes. We can adjust rubber hardness, modify compound formulation, and optimize geometry for different markets or special use cases (taxi fleets, bad roads, cold or hot climates). We also support small-batch production, customized branding and packaging for distributors.

---

Q7. Is wheel alignment necessary after Toyota control arm bushing replacement?
A7. Yes, a 4-wheel alignment is strongly recommended. Since the control arm bushing directly affects front wheel toe and camber, skipping alignment may lead to continued tire wear and unstable steering even after replacement.

---

Q8. What certifications does Hebei Huami have for producing control arm bushings?
A8. Hebei Huami is certified to IATF16949 and other automotive quality systems, and also holds AEO advanced certification for customs. This means our production and quality control are suitable for OEM and high-level aftermarket supply, and our export procedures are efficient and reliable.
