Toyota Corolla Engine Mount OEM 12361-11181

The engine mount is the bridge between a passenger car's powertrain and its body. Bolted to the engine on one side and the subframe on the other, it must carry the full weight of the powertrain while absorbing the vibration and torque shocks generated at idle, under acceleration and during gear shifts. For the Toyota Corolla — one of the best-selling nameplates in automotive history — the front engine mount under OEM number 12361-11181 is among the fastest-moving rubber anti-vibration parts in the aftermarket. This guide walks OEMs, importers and wholesale buyers through the structure, vehicle applications, cross references, failure symptoms, key specifications and installation notes of the 12361-11181 engine mount.

1. Technical Overview: Structure, Materials and Performance

1.1 Product Structure

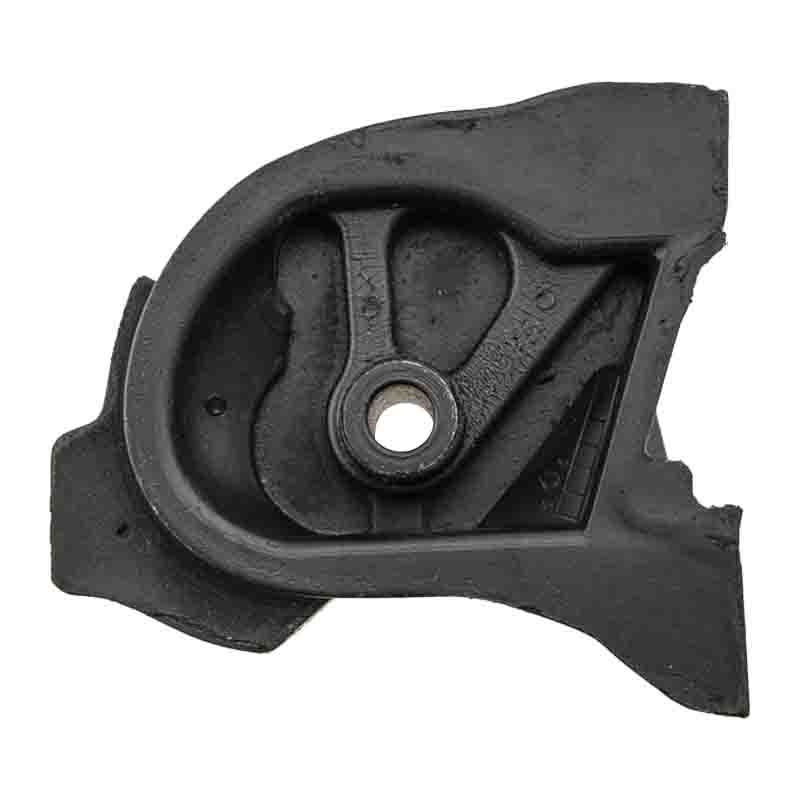

Part 12361-11181 is a classic rubber-to-metal bonded engine mounting insulator for the front position. It consists of three elements: an outer steel armature (stamped or cast), a center metal sleeve with a 10 mm inner diameter, and a natural rubber body vulcanized between them. The distance between the two mounting bores is 75 mm — identical to the original part, so it installs as a direct drop-in replacement with no modification.

1.2 Rubber Compound and Vulcanization

The rubber body uses an in-house compound based on natural rubber (NR) with a standard hardness of 55±5 Shore A, balancing vibration isolation with load-bearing stiffness; hardness can be customized between 45 and 70 Shore A to the customer's drawing. Rubber and metal are joined by hot vulcanization bonding, accepted against the R-type failure criterion: in a pull-to-destruction test, the break must occur within the rubber body itself rather than at the bond line, which guarantees the mount will not debond under long-term alternating loads.

1.3 Performance Advantages

• Vibration isolation: the NR compound keeps a stable dynamic-to-static stiffness ratio from -40°C to +100°C, suppressing idle shake transmitted into the cabin.

• Durability: validated by fatigue testing under combined compression-shear loads that simulate real vehicle duty cycles.

• Corrosion protection: the steel armature is e-coated or zinc-plated, suitable for European de-icing salt conditions and humid coastal markets.

• Consistency: tooling-based production under IATF 16949 process control keeps batch-to-batch dimensional and hardness variation low — a key requirement for OEM and volume buyers.

Hebei Tongsource International Trade Co., Ltd. is a wholly-owned subsidiary of Hebei Huami New Material Technology Co., Ltd., a rubber damping and sealing components manufacturer listed on the Beijing Stock Exchange. Huami has specialized in rubber anti-vibration parts for over two decades and holds IATF 16949, ISO 9001, ISO 14001, TÜV and AEO certifications. The 12361-11181 engine mount is produced directly at Huami's plant and exported by Tongsource — factory pricing with listed-company quality assurance.

2. Vehicle Application List (by Model Series / Year)

This mount covers 40+ variants across the Corolla E100 and E110 platforms. Main applications:

Note: compiled from public cross-reference databases. Please confirm final fitment by VIN or by comparing the removed original part.

3. Cross-Reference Numbers

12361-11181 is interchangeable with the following OE and aftermarket numbers:

4. Typical Failure Symptoms

1. Noticeably stronger vibration in the steering wheel, seats or dashboard at idle, especially in Drive with the brake applied;

2. A dull clunk or metallic knock from the engine bay during hard acceleration or sudden throttle lift;

3. Fore-aft lurching of the body when shifting, particularly between Reverse and Drive;

4. Visible cracking or chunking of the rubber body, or a separation gap at the rubber-to-metal interface;

5. Excessive engine rocking when revving in neutral (normal movement should stay within roughly 1 cm);

6. Rubber swollen and softened after long-term oil contamination, losing its supporting stiffness.

If any of these symptoms appear, inspect all mounting points together — a single failed mount accelerates fatigue in the remaining ones.

5. Key Specifications (Hardness, Dimensions, Materials)

6. Installation Notes

1. Support the engine oil pan with a jack and a wooden block before removal; never let the engine hang on the remaining mounts;

2. Tighten mounting bolts in stages and in a diagonal sequence; follow the factory torque spec (typically 40–50 N·m for M10 bolts — always confirm with the service manual);

3. Perform the final torque with the engine's full weight resting on the mount and the wheels on the ground, to avoid pre-loading the rubber in torsion;

4. Never apply engine oil or mineral grease to the rubber section — oils cause swelling and premature aging;

5. Replace mounts as a set where possible; mixing new and old mounts redistributes vibration unevenly;

6. Road-test after installation: smooth idle, no lurch on shifting and no knocking under acceleration confirm a correct install.

7. FAQ

Q1: Is 12361-11181 interchangeable with 12361-15181 or FEBEST TM-10?

Yes. They belong to the same cross-reference family, share the 75 mm bore distance and center hole size, and all fit the front mounting position on Corolla E100/E110 platforms.

Q2: Are you a factory or a trading company?

Hebei Tongsource International Trade Co., Ltd. is the wholly-owned export subsidiary of Hebei Huami New Material Technology Co., Ltd., a Beijing Stock Exchange listed manufacturer — effectively factory-direct supply with a professional export team.

Q3: What is your MOQ?

Typically 200–500 pieces per part number, and mixed-container loading with other Toyota mounts is welcome. Small trial orders are accepted for first-time cooperation.

Q4: Can you produce under our own brand?

Yes. Full OEM/ODM service is available: neutral packaging, color boxes, labels, barcodes and brand embossing to your specification.

Q5: Can the rubber hardness be customized?

Yes. The standard is 55±5 Shore A, adjustable between 45 and 70 Shore A according to your drawing or sample.

Q6: What is the lead time?

25–35 days for regular production orders; fast-moving numbers in stock can ship within 7–10 days.

Q7: What warranty do you offer?

12 months or 30,000 km, whichever comes first. Debonding or cracking not caused by installation error is replaced free of charge.

Q8: How do I confirm fitment for my market?

Send us the VIN or the original part number — our engineering team will confirm fitment and quote within 24 hours.

8. Conclusion & Call to Action

With its wide vehicle coverage, mature cross-reference family and steady aftermarket demand, the OEM 12361-11181 engine mount is a high-turnover item worth prioritizing in any Toyota rubber parts inventory. Backed by the listed-company manufacturing capacity and IATF 16949 quality system of Hebei Huami New Material Technology Co., Ltd., Hebei Tongsource International Trade Co., Ltd. delivers factory-direct pricing with fully traceable quality.

Contact us today for free samples, a complete price list and our full Toyota engine mount catalog. Send your purchasing list or VIN — we reply within 24 hours. Visit tongsource.com or email your inquiry now, and let our team support your next order.
