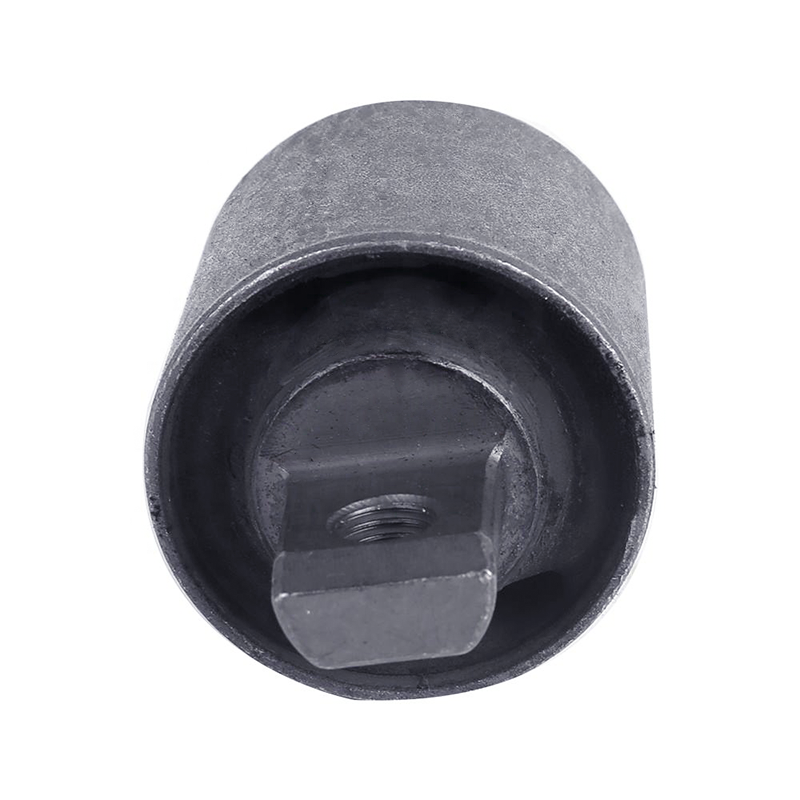

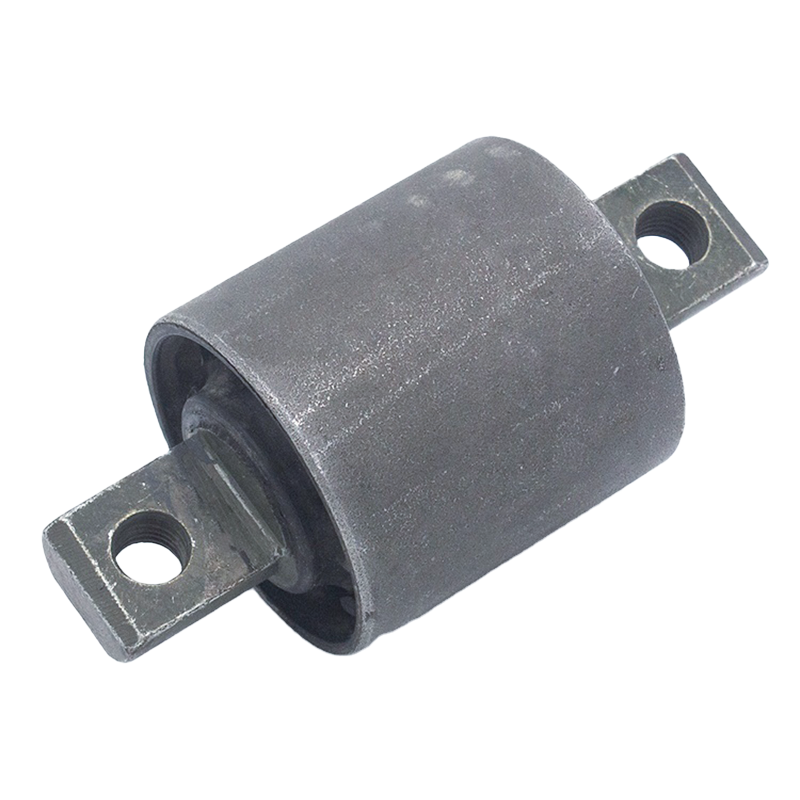

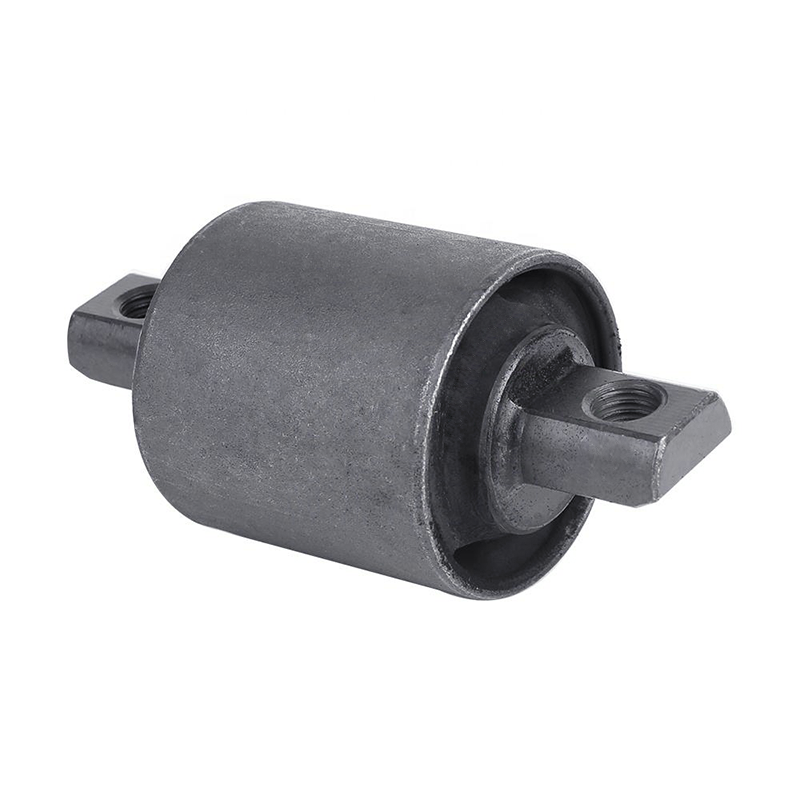

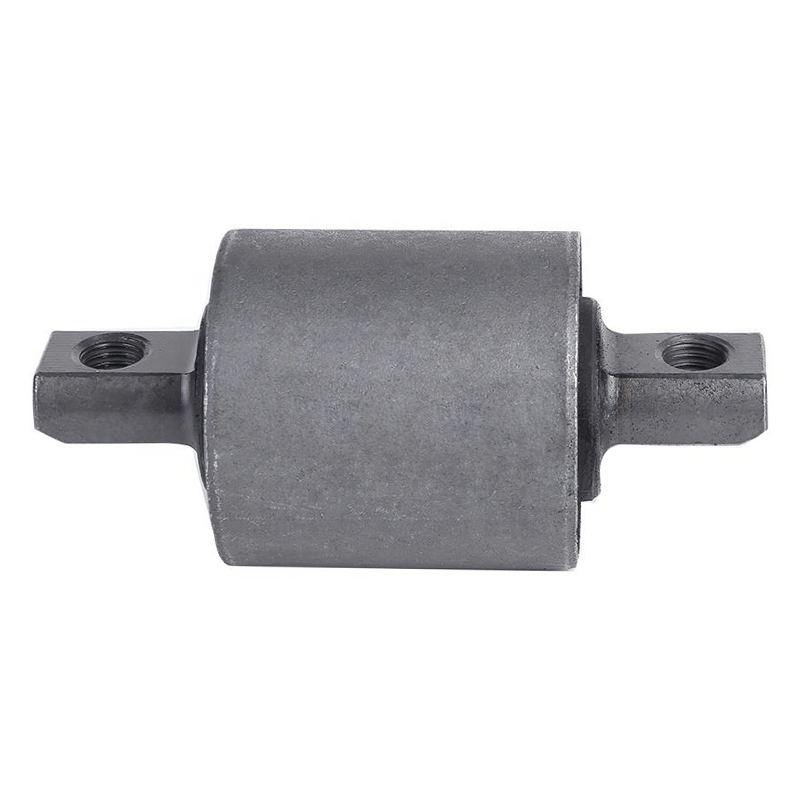

The Front Lower Control Arm Bushing is a rubber–metal composite at the joint between the control arm and the subframe/body, delivering stiffness where needed and compliance where desired on multiple axes.
· Location & handling: maintains camber/caster/toe under steering, braking, and acceleration—reducing vehicle pull and abnormal tire wear; improves straight‑line stability and cornering precision.
· Comfort & NVH: rubber hysteresis and tuned dynamic stiffness isolate fine road impacts and structure‑borne noise; robust bonding avoids low‑temperature squeal and knock after aging.
· Durability & warranty outcomes: proper compound/hardness and press‑fit interference lower high‑cycle fatigue, thermo‑oxidative aging, and media attack—reducing early failures.
· Inner sleeve: precision‑machined or cold‑drawn steel tube; phosphate/zinc anti‑corrosion; clamps with the bolt to transmit torque and axial clamping force.
· Rubber layer: NR/NBR/HNBR/PU; hardness, section geometry, cavity design, and formulation govern static/dynamic stiffness, rebound, and media resistance.
· Outer sleeve: roll‑formed steel shell; blasted + primed to ensure OD retention and concentricity during press‑fit.
· Vulcanized bond: primer/adhesive/topcoat tri‑layer; single‑cure process. Peel strength meets/exceeds ASTM D429; withstands oil, hot‑water shock, and thermal cycling.
· Note: XC70/XC90 platforms have variants (eccentric/solid/cavity types). Always verify orientation and dimensions by VIN, service manual, and physical measurement.
Material | Typical Hardness (Shore A) | Continuous Temp | Oil/Fuel Resistance | NVH Behavior | Typical Use |
NR (Natural Rubber) | 55–70 | −40 to +90 °C | ★ | Compliant, very quiet | Urban/highway comfort |
NBR (Nitrile) | 60–75 | −30 to +110 °C | ★★★ | Slightly firmer | Light/medium oil exposure |
HNBR (Hydrogenated NBR) | 60–80 | −40 to +150 °C | ★★★★ | Stable vs. heat & oil | High temp + oil contamination |
PU (Polyurethane) | 70–85 | −40 to +120 °C | ★★ | High stiffness | Sport/heavy‑duty/unpaved |
Recommendations: Comfort/quiet → 60–65A NR/HNBR. Rough roads/heavy duty/high temp & oil → 70–75A HNBR/PU. Thickened outer sleeve & higher‑stiffness versions available.
Standard format: 31277881
Common mistypes/SEO variants: 3127 7881 (space); 31‑27‑7881 (hyphenated); 3127788 (one digit missing); 31277881A/B (suffix—verify dimensions).
Fitment: Volvo XC70 / XC90 front lower control arm bushing; verify exact position and variant by service manual & on‑vehicle measurement.
Common OD variants for warehouse check/sample comparison. Final spec must follow drawing & CMM measurement if needed.
Variant | Outer Ø (OD) | Inner Ø (ID) | Overall Width (W) | Flange Thick. (T) | Ref. Tolerance |
A | 62.0 mm (2.441 in) | 14.2 mm (0.559 in) | 49.5–50.0 mm (1.949–1.969 in) | 3.0 mm (0.118 in) | OD/ID ±0.20 mm; W/T ±0.15 mm |
B | 65.0 mm (2.559 in) | 14.2 mm (0.559 in) | 49.5–50.0 mm (1.949–1.969 in) | 3.0 mm (0.118 in) | Same as above |
C | 67.0 mm (2.638 in) | 14.2 mm (0.559 in) | 49.5–50.0 mm (1.949–1.969 in) | 3.0 mm (0.118 in) | Same as above |
Interference‑fit micro‑tuning: choose +0.05 / +0.10 mm OD micro‑oversize if fit is too loose/tight; we can reverse‑match bore tolerances.
1. Confirm position & OD variant (check eccentric/cavity structure).
2. Road condition: Urban/highway → 60–65A; Unpaved/rough >30% → 70–75A (optional PU reinforcement).
3. Load: Full load/towing/aggressive accel → +5A hardness; consider thickened outer sleeve.
4. Temperature & oil: Near heat source or oil seepage → NBR/HNBR first choice.
5. NVH target: Quiet cabin → NR 60–62A with dynamic stiffness tolerance ≤ ±10% (NVH‑tuned).
6. Supply: Samples 50–100 sets; 7–15 days typical; customization 20–30 days.
Tools: Hydraulic press + dedicated press cups/guide sleeves; torque wrench; marker; cleaner; oil‑resistant assembly lube (metal interfaces only).
7. Lift vehicle and support lower arm; mark ride‑height position.
8. Remove fasteners and ball joint; clean bore.
9. Align to index marks and press square to avoid eccentricity.
10. Press to shoulder stop; ensure coaxiality and seating.
11. Snug bolts, lower to ride height, then final torque to spec.
12. Road‑test and re‑inspect.
Reference torque ranges (follow manual): Control arm bushing main bolt 120–140 N·m; Bracket → subframe 90–105 N·m.
Re‑torque after 800–1,200 km; recheck after severe impacts.
Common mistakes:
· Final torque with wheels hanging → rubber pre‑twist & early cracking → torque at ride height.
· Lube on rubber → bondline slip → lube only metal interfaces.
· Wrong orientation/eccentric press → NVH anomalies → align to index marks.
· Corroded bore untreated → loose fit → repair first or use micro‑oversize OD.
· Incorrect torque → noise/thread damage → use calibrated torque wrench and record values.
Symptom | Possible Cause | Solution |
Thump at start/stop | Rubber debonding/hardening | Replace; higher bonding‑grade / higher hysteresis compound |
Vehicle pull / abnormal tire wear | Eccentric install / loose OD fit | Re‑press & align; +0.05 mm OD |
Cold‑weather squeal | Rubber too hard / poor low‑temp loss | NR 60–62A or low‑temp HNBR |
Brake shudder | Dynamic‑stiffness deviation | NVH‑tuned version (≤ ±10%) |
Early cracking/swelling | Heat + oil/chemicals | NBR/HNBR; fix leaks |
Press‑fit scarring/shell deformation | Misaligned tooling / uneven load | Dedicated press cups + guides; even press |
· Systems & certifications: ISO 9001 / IATF 16949 / ISO 14001 / ISO 45001 / GJB 9001C / AS9100D / AEO; PPAP/IMDS/control plan on request.
· Lab: ASTM D2240 hardness, ISO 37 tensile, ISO 815 compression set, ASTM D429 peel, ozone/heat aging, salt spray, NVH dynamic‑stiffness bench.
· Traceability: unique piece barcode + batch ID; full traceability of compound/formulation and key operations.
· Differentiators: OD micro‑tuning (+0.05/+0.10 mm), hardness customization (60–85A), thickened outer sleeve, oil/high‑temp compounds; optional CMM dimensions and peel/hardness/dynamic‑stiffness reports.
· Case: LATAM distributor used 70–75A HNBR reinforced version; EU workshop used 65A NR comfort version (client‑authorized aggregated results).
· Q: Is 31277881 the same as 3127 7881 / 31‑27‑7881?
A: Yes—alternate spelling; verify dimensions & install position.
· Q: Comfort vs. handling?
A: Urban/highway → 60–65A; rough roads/aggressive driving → 70–75A or PU.
· Q: Cold‑weather squeal?
A: NR 60–62A or low‑temp HNBR; check alignment.
· Q: OD micro‑oversize available?
A: +0.05 / +0.10 mm and tolerance‑band customization.
· Q: Wheel alignment after replacement?
A: Recommended to restore geometry and tire wear.
· Q: NVH‑tuned versions?
A: Dynamic stiffness tolerance within ±10% available.
· Q: Lead time & MOQ?
A: Samples 50–100 sets; 7–15 days; customization 20–30 days.
· Q: PPAP/IMDS & reports?
A: Available: PPAP/IMDS, CMM, peel/hardness/dynamic‑stiffness.
