The torque rod rubber bushing stands as one of the most critical yet often underestimated components in Mercedes-Benz heavy truck suspension systems. When this seemingly simple part fails, it triggers a cascade of issues: violent drivetrain vibrations, premature component wear, driver fatigue, and ultimately, costly downtime. For parts distributors, fleet managers, and independent repair shops serving the European, North American, and South American markets, understanding the technical nuances of OEM part number A9423260050 (also referenced as A 942 326 00 50 or 9423260050) is essential for maintaining Mercedes Actros, Atego, Axor, and Econic chassis integrity.
This comprehensive guide examines the engineering principles, material science, installation protocols, and quality benchmarks that separate premium replacement bushings from premature failures. Drawing on Hebei Huami New Material Technology Co., Ltd.'s 30 years of rubber component expertise and IATF 16949/TÜV certification, we'll provide actionable insights for selecting, installing, and troubleshooting this critical chassis component.
The torque rod bushing serves a dual mechanical function in Mercedes heavy truck suspensions. During acceleration and braking, the drivetrain generates enormous rotational forces (torque reaction) attempting to twist the axle housing relative to the chassis frame. The torque rod—a rigid steel member connecting axle to frame—restrains this rotation, while the rubber bushings at each mounting point absorb and dissipate the energy rather than transmitting shock loads directly into the frame.
Simultaneously, these bushings act as the primary NVH (Noise, Vibration, Harshness) isolation barrier between road surface irregularities and the cab structure. A properly engineered bushing allows controlled deflection (typically 8-15° angular movement) under normal operating loads while providing sufficient stiffness to prevent excessive axle wind-up during high-torque events like emergency braking or climbing steep grades with maximum GVW loads.
For fleet operators, the financial impact extends beyond the €35-60 bushing replacement cost:
· Reduced maintenance cycles: Quality bushings maintain dimensional stability for 200,000-300,000 km versus 80,000-120,000 km for inferior aftermarket alternatives
· Driver retention: Eliminating cabin vibration reduces operator fatigue—a critical factor in competitive labor markets
· Secondary component protection: Proper torque rod function prevents accelerated wear of shock absorbers (€180-250 each), leaf spring bushings (€25-40 each), and chassis frame mounting points (repair costs €800-2,000)
Action: Request comparative total cost of ownership analysis for your specific fleet application → [Contact Technical Sales]

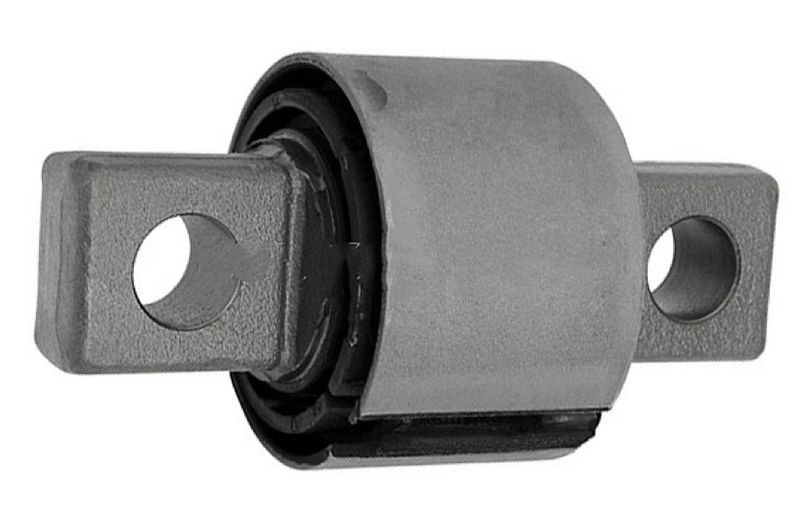

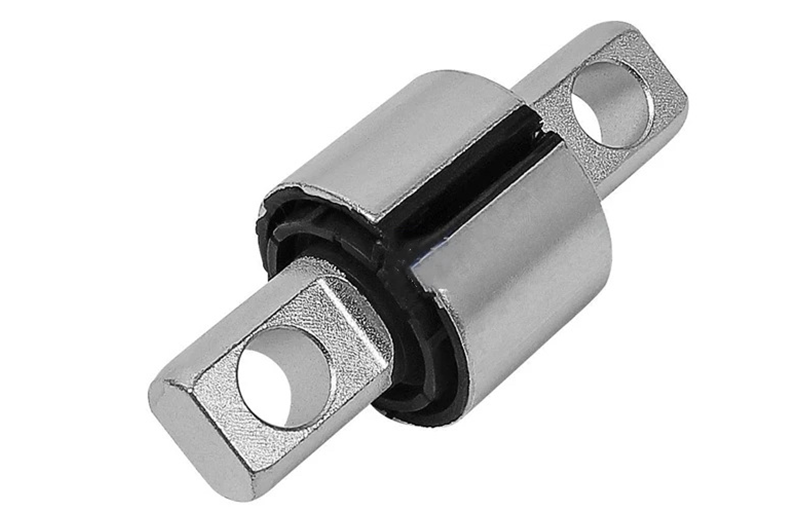

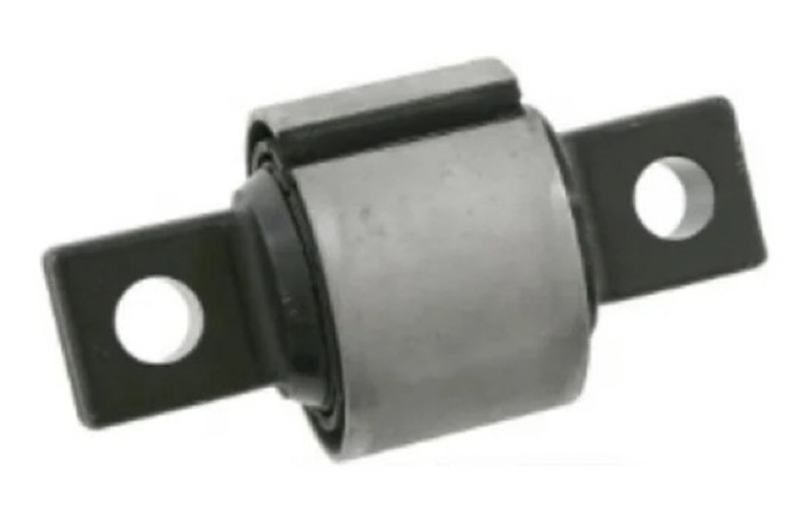

The A9423260050 bushing employs a sophisticated three-layer design optimized for conflicting performance demands:
1. Inner Steel Sleeve (Core Tube)
· Cold-drawn seamless steel tube, 40-45 HRC surface hardness
· Precision ground OD (outer diameter) with ±0.05mm tolerance
· Phosphate coating for corrosion resistance and adhesion promotion
2. Elastomer Layer (Load-Bearing Element)
· Natural rubber (NR) + polybutadiene (BR) compound for low-temperature flexibility
· Shore A hardness: 60-70° (standard), 75-80° (heavy-duty variant)
· Bonded via two-stage vulcanization with resorcinol-formaldehyde latex (RFL) adhesive system
· Molded void geometry (windows/voids) creates controlled directional stiffness
3. Outer Steel Shell
· Deep-drawn steel housing, zinc electroplated (12-15μm thickness)
· Press-fit retention features maintain compression preload
· Integrated flange for axial load distribution
Parameter | Standard Grade | Heavy-Duty Grade | Premium Synthetic |
Rubber Compound | NR/BR blend | NR/BR/SBR | EPDM/NBR blend |
Shore A Hardness | 60-65° | 75-80° | 70-75° |
Temperature Range | -40°C to +80°C | -35°C to +90°C | -45°C to +100°C |
Oil Resistance | Moderate | Moderate | Excellent |
Ozone Resistance | Good | Good | Excellent |
Static Stiffness (radial) | 850-1,050 N/mm | 1,200-1,450 N/mm | 1,000-1,200 N/mm |
Service Life (avg) | 200,000 km | 250,000 km | 300,000 km |
Bushing failure rarely occurs through rubber tearing; 78% of premature failures originate from adhesion breakdown between rubber and metal interfaces. The RFL (resorcinol-formaldehyde latex) bonding system requires precise process control:
· Metal surface preparation: Shot-blasting to Ra 3.2-6.3μm, followed by phosphating
· RFL primer application: 0.15-0.25mm dry film thickness
· Vulcanization parameters: 165-175°C, 12-18 minutes at 150 bar pressure
· Post-cure adhesion testing: >12 MPa peel strength per ISO 813
Quality Insight: Huami's IATF 16949-certified manufacturing executes 100% automated adhesion pull-testing on statistical sample batches, with full traceability via laser-etched batch codes on each bushing.
Action: Request adhesion test reports and process capability (Cpk) data for critical applications → [Request Technical Documentation]
Mercedes-Benz references this torque rod bushing under multiple formats across regional parts catalogs and service documentation:
· A9423260050 (standard format)
· A 942 326 00 50 (spaced format, common in printed catalogs)
· 9423260050 (abbreviated format)
· 942 326 0050 (alternative spacing)
All formats are interchangeable and refer to the identical component. Aftermarket suppliers should catalog under all variations to optimize search visibility.
Model Series | Production Years | Mounting Position | Qty per Vehicle |
Actros (960-963) | 1996-2011 (MP1/MP2) | Rear axle torque rod, frame side | 2-4* |
Actros (963) | 2011-2018 (MP3) | Rear axle torque rod, frame side | 2-4* |
Atego | 1998-2013 (Gen 1/2) | Rear axle torque rod, both ends | 2-4* |
Axor | 2001-2013 | Rear axle torque rod, frame side | 2-4* |
Econic | 1998-present | Rear axle torque rod, frame side | 2-4* |
*Quantity varies by axle configuration (single/tandem) and torque rod design (V-rod vs parallel rods)
Dimension | Metric (mm) | Imperial (inch) | Tolerance |
Inner Bore Diameter (ID) | 30.0 | 1.181 | ±0.10 mm |
Outer Shell Diameter (OD) | 68.0 | 2.677 | ±0.15 mm |
Overall Length | 98.0 | 3.858 | ±0.20 mm |
Rubber Layer Thickness | 19.0 | 0.748 | ±0.50 mm |
Mounting Bolt Size | M30 x 1.5 | - | - |
Flange Thickness | 6.0 | 0.236 | ±0.10 mm |
Fitment Verification: Always confirm dimensions against physical measurements of original parts, as Mercedes occasionally implements silent running changes across production runs without part number updates.
Action: Request dimensional inspection reports for batch-specific verification → [Request Inspection Certificate]
Step 1: Assess Operating Load Profile
· Urban delivery/refuse (frequent stops, low speed): Standard 60-65 Shore A
· Regional distribution (mixed highway/city): Standard 60-65 Shore A
· Long-haul highway (sustained high-speed): Standard to Heavy-Duty 70-75 Shore A
· Construction/mining (severe duty, off-highway): Heavy-Duty 75-80 Shore A
· Overload conditions (consistent above-GVW operation): Heavy-Duty + reinforced design
Step 2: Evaluate Environmental Factors
Temperature Extremes:
· Arctic operations (<-30°C): Premium synthetic compound with enhanced low-temp flexibility
· Desert/tropical (>40°C ambient): Standard NR/BR adequate; ensure adequate ventilation
· Engine bay proximity: Verify actual operating temperature; may require heat shielding
Chemical Exposure:
· Standard diesel fuel splash: Standard NR/BR adequate
· Hydraulic fluid leaks: Upgrade to NBR-based compound (oil-swell <15%)
· De-icing salt exposure: Ensure complete zinc plating coverage; inspect semi-annually
Step 3: Road Surface Conditions
· Paved highways (80%+ mileage): Standard specification
· Mixed paved/unpaved (50/50): Standard with annual inspection protocol
· Severe unpaved/off-road (>30% mileage): Heavy-duty + reduce replacement interval 25-30%
Application Type | Recommended Shore A | Trade-offs |
City bus/refuse | 60-65° | Max comfort, reduced lifespan in overload |
Standard freight | 65-70° | Balanced performance/durability |
Heavy-haul/tanker | 75-80° | Max durability, increased NVH transmission |
Severe off-highway | 75-80° + reinforced | Maximum stiffness, requires more frequent inspection |
Custom Engineering Option: Huami offers application-specific compound formulation for fleets operating >100 vehicles under identical severe-duty conditions. Minimum order quantities apply.
Action: Complete our online application worksheet for specification recommendation → [Access Selection Tool]
Before removing old bushings, document and inspect:
1. Torque rod condition: Check for bending, cracking, or corrosion; replace if compromised
2. Mounting bracket integrity: Inspect frame bracket for cracks, elongated bolt holes, or deformation
3. Axle housing mounting boss: Check for wear, thread damage, or housing cracks
4. Adjacent components: Document shock absorber condition, leaf spring bushing state
Required Tools:
· Hydraulic press (20-ton minimum) or bushing installation tool set
· Torque wrench (calibrated, 0-500 Nm range)
· Thread-locking compound (medium strength, e.g., Loctite 243)
· Rubber lubricant (soap solution or specialized mounting gel—never petroleum-based)
Installation Sequence:
1. Support vehicle safely: Axle stands under frame rails; release suspension load completely
2. Remove old bushing:
o Loosen mounting bolts gradually (avoid shock loads)
o Press out old bushing using appropriate drift (avoid damaging mounting bores)
o Clean mounting surfaces with wire brush; inspect for damage
3. Prepare new bushing:
o Verify part number match and dimensional check
o Apply thin layer of rubber-compatible lubricant to outer shell only
o Ensure rubber surface remains clean (contamination causes adhesion failure)
4. Press installation:
o Align bushing squarely; press in smoothly without cocking
o Press until outer shell flange seats fully against mounting surface
o Maximum installation force should not exceed 15 tons (indicates misalignment/wrong part)
5. Torque rod installation:
o Insert mounting bolts with thread-locking compound
o Hand-tighten all fasteners before final torque
o Torque in two stages with vehicle at ride height (loaded suspension)
Fastener Location | Initial Torque (Stage 1) | Final Torque (Stage 2) | Re-torque Interval |
Frame-side bushing bolt (M30) | 300 Nm (221 lb-ft) | 450 Nm (332 lb-ft) | 500 km / 300 mi |
Axle-side bushing bolt (M30) | 300 Nm (221 lb-ft) | 450 Nm (332 lb-ft) | 500 km / 300 mi |
Torque rod body bolts (if equipped) | 180 Nm (133 lb-ft) | 250 Nm (184 lb-ft) | 500 km / 300 mi |
Critical: All final torque values must be applied with vehicle at normal ride height (suspension loaded). Torquing with wheels hanging causes rubber preload distortion and premature failure.
First 500 km / 300 miles:
· Re-torque all fasteners to final specification
· Inspect for bushing movement, fluid leaks, or unusual noise
10,000 km / 6,000 mile intervals:
· Visual inspection for cracking, oil contamination, or displacement
· Check torque retention (should not drop >10% from specification)
1. Torquing with unloaded suspension (60% of premature failures)
2. Using petroleum-based lubricants (attacks rubber compound)
3. Reusing self-locking fasteners (torque retention failure)
4. Ignoring torque rod alignment (induces side loads, accelerates wear)
5. Installing with damaged/corroded metal components (stress concentration points)
Action: Download our illustrated installation guide with torque patterns → [Access Installation Resources]
Symptom | Probable Cause | Verification Method | Solution |
Harsh ride, excessive cab bounce | Worn/cracked rubber; loss of damping | Visual inspection; measure deflection under load | Replace bushings; check shock absorbers |
Clunking noise during accel/braking | Rubber-metal bond failure; excessive clearance | Check for rotational play in bushing | Replace bushings; inspect torque rod for bending |
Steering wheel vibration 80-100 km/h | Unbalanced driveline + worn bushings amplifying | Balance driveshaft; replace bushings | Address driveline first, then bushings |
Visible rubber cracks/chunks missing | Ozone degradation; chemical attack; age | Visual inspection; check for fluid leaks | Replace bushings; identify contamination source |
Bushing displaced from housing | Insufficient press-fit; wrong part; impact damage | Measure OD vs housing ID; check part number | Verify correct part; inspect mounting bore |
Premature wear (<80,000 km) | Wrong hardness spec; overload; misalignment | Review application vs specification | Re-specify bushing; correct load/alignment issues |
Oil-soaked rubber, swelling | Hydraulic/engine oil exposure; wrong compound | Check for fluid leaks; measure swell | Replace with oil-resistant compound; repair leaks |
Metal corrosion at bond interface | Coating failure; moisture ingress | Inspect for rust jacking at metal-rubber interface | Replace bushings; improve drainage/ventilation |
Case Study: Premature Failure Pattern Analysis
A South American fleet experienced 60% bushing failures at 90,000 km (vs expected 200,000 km). Investigation revealed:
· Root cause: Consistent 15% overloading + high-speed unpaved roads
· Contributing factors: Standard 65 Shore A spec inadequate for duty cycle
· Solution: Upgraded to 75 Shore A heavy-duty + 20% reduction in load factor
· Result: Extended service life to 180,000 km, 70% reduction in unscheduled maintenance
Lesson: Component specification must match actual operating conditions, not nominal vehicle ratings.
Action: Submit failed parts for laboratory analysis to identify failure mode → [Request Failure Analysis Service]
Hebei Huami's 30-year specialization in rubber-to-metal bonded components incorporates multiple quality gates:
Incoming Material Verification:
· Rubber compound Mooney viscosity testing (ML 1+4 @ 100°C)
· Steel material certification (chemical composition, mechanical properties)
· Adhesive system batch testing (shelf life, viscosity)
In-Process Quality Control:
· Automated dimensional inspection (100% parts via optical CMM)
· Vulcanization parameter recording (time, temperature, pressure per part)
· Statistical Process Control (SPC) with real-time Cp/Cpk monitoring
Final Product Testing:
· Destructive adhesion testing (statistical sampling per ISO 2859)
· Durability testing per Mercedes internal specifications
· Environmental exposure testing (thermal cycling, ozone chamber, salt spray)
IATF 16949:2016 Certification:
· Automotive quality management system compliance
· Advanced Product Quality Planning (APQP) methodology
· Production Part Approval Process (PPAP) documentation available
TÜV Certification:
· Independent third-party product safety verification
· Ongoing surveillance audits for continued compliance
Traceability Protocol:
· Laser-etched batch code on each bushing (8-digit production date + line identifier)
· Full material genealogy traceable to raw material lot numbers
· Retention of physical samples for 10 years per automotive industry standards
Test Type | Standard | Acceptance Criteria |
Radial stiffness | ISO 2856 | 850-1,050 N/mm @ 5mm deflection |
Adhesion strength | ISO 813 | >12 MPa peel strength |
Durability cycling | Mercedes internal | 500,000 cycles @ ±15° @ 2 Hz |
Temperature resistance | ISO 188 | <20% property change after 168h @ 100°C |
Ozone resistance | ISO 1431-1 | No cracking @ 50 pphm, 40°C, 20% strain, 96h |
Salt spray corrosion | ISO 9227 | <5% rust coverage after 480h |
Action: Request complete test reports and material certifications for your quality assurance documentation → [Request Quality Documentation]
Technical Advantages:
1. Compound customization: Unlike catalog suppliers, Huami formulates application-specific rubber compounds for severe-duty fleets (MOQ: 500 units)
2. Reverse engineering capability: Provide sample or technical drawing; receive dimensionally accurate replacement within 15 business days
3. Extended warranty program: 24-month/300,000 km warranty available for qualified fleet applications (terms apply)
Business Advantages: 4. Direct manufacturer pricing: Eliminate distributor markup layers; typical 15-25% cost advantage vs branded aftermarket 5. Private labeling: Custom packaging and branding available (MOQ: 1,000 units) 6. Technical support: Application engineering assistance included; failure analysis service available
European Fleet Case Study:
· Customer: 280-truck long-haul freight operator (Germany/Poland routes)
· Challenge: Inconsistent bushing quality from multiple suppliers; average 90,000 km service life
· Solution: Standardized on Huami 70 Shore A specification with oil-resistant compound
· Results:
o Average service life increased to 215,000 km (138% improvement)
o Unscheduled maintenance events reduced 64%
o Total annual bushing expenditure decreased 41% despite premium product pricing
South American Mining Application:
· Customer: Open-pit mining contractor (Chile)
· Challenge: Extreme dust, temperature swings (-5°C to 45°C), severe vibration; OEM bushings lasting 40,000 km
· Solution: Custom 80 Shore A compound with enhanced abrasion resistance + sealed design
· Results:
o Service life extended to 95,000 km (137% improvement)
o Eliminated catastrophic torque rod failures (previous: 3-4 annually)
Action: Request detailed case studies relevant to your application segment → [Request Application Stories]
Q1: Can I install torque rod bushings with the vehicle on the ground to save time?
No. Final torque specifications must be applied with the suspension at normal ride height (loaded). Torquing with wheels hanging causes the rubber to pre-twist, leading to premature failure. You can perform initial assembly with wheels hanging, but final torque must occur with vehicle weight on suspension.
Q2: How do I identify if my bushing failure is from age or operating conditions?
Age-related failure shows uniform surface cracking (ozone) and hardening. Premature operational failure shows: torn rubber at high-stress points, oil swelling, bond separation, or concentrated wear patterns. If failure occurs before 150,000 km, investigate operating conditions or specification mismatch.
Q3: Are all A9423260050 bushings interchangeable regardless of manufacturer?
Dimensionally, yes—if manufactured to OEM specifications. However, rubber compound formulation, adhesive systems, and quality control vary significantly between manufacturers. Always verify certifications and request material specifications. Huami provides full PPAP documentation matching Mercedes internal specifications.
Q4: Can I upgrade to harder bushings to extend service life without downsides?
Partially. Harder bushings (75-80 Shore A) do increase durability in severe-duty applications, but they transmit more vibration to the chassis and reduce isolation effectiveness. For normal highway operations, standard 60-65 Shore A provides the optimal comfort/durability balance. Upgrade hardness only when operating conditions justify the trade-off.
Q5: What causes the rubber to separate from the metal sleeve?
Adhesion failure results from: (1) inadequate surface preparation during manufacturing, (2) contamination (oil, grease) on rubber surface during installation, (3) excessive operating temperatures exceeding compound limits, or (4) chemical attack from incompatible fluids. Quality manufacturers like Huami employ RFL bonding systems with >12 MPa peel strength to prevent this failure mode.
Q6: How can I verify I'm receiving genuine quality bushings vs low-grade counterfeits?
Verify: (1) Laser-etched batch codes (legitimate manufacturers include traceability), (2) Request material certifications and test reports, (3) Physical inspection—uniform rubber surface, complete zinc plating, precise dimensions, (4) Manufacturer certifications (IATF 16949, TÜV). Huami provides certificate of conformance with every order batch.
Q7: Can bushings be installed using hand tools, or is a press mandatory?
A hydraulic press (20-ton minimum) is strongly recommended for controlled, square installation. Impact installation (hammering) risks: cocking the bushing, damaging the rubber-metal bond, deforming the mounting bore, and cracking the housing. Some technicians successfully use large C-clamps with appropriate adapters, but precision alignment is critical.
Q8: What's the failure consequence if I don't re-torque fasteners after the initial 500 km?
Fasteners may loosen progressively, allowing rotational movement that rapidly destroys the bushing through fretting wear. Additionally, loose bolts create impact loads that can crack the mounting brackets or torque rod itself—repairs costing €800-2,000 vs 15 minutes for re-torque inspection.
Q9: Should I replace both bushings on a torque rod simultaneously, or can I replace only the failed side?
Always replace both bushings on the same torque rod simultaneously. Mismatched stiffness creates uneven load distribution, accelerating wear on the new bushing and potentially inducing torque rod bending. If budget constraints exist, prioritize complete torque rod sets over partial repairs.
Q10: Does Huami support custom modifications for non-Mercedes applications using similar dimensions?
Yes. Huami specializes in custom bushing development from samples, technical drawings, or dimensional specifications. Reverse engineering services available for any commercial vehicle or industrial application. Standard lead time: 15 business days for prototype samples; 30 days for production quantities. MOQ varies by complexity.
Action: Submit your technical inquiry or custom specification requirements → [Contact Engineering Team]
The Mercedes-Benz A9423260050 torque rod bushing exemplifies a crucial principle in commercial vehicle maintenance: small components exert disproportionate influence on system reliability and operating costs. For parts distributors serving the European, North American, and South American markets, partnering with manufacturers who demonstrate genuine technical competence and quality commitment directly impacts your customer retention and reputation.
Hebei Huami New Material Technology Co., Ltd. offers more than commodity bushing supply—our 30-year specialization in rubber-to-metal bonding, IATF 16949/TÜV certifications, and applications engineering support provide the technical foundation for long-term fleet partnerships. Whether you require catalog items with reliable supply chains, custom formulations for severe-duty applications, or private-label programs to build your brand equity, our manufacturing capabilities align with your business objectives.
For Immediate Sourcing:
· Request current pricing and MOQ for standard A9423260050 specification
· Obtain sample parts for physical evaluation and fit verification
· Review PPAP documentation for your quality assurance files
For Custom Applications:
· Complete our application worksheet for engineering recommendation
· Submit failed parts or samples for reverse engineering
· Discuss custom compound development for severe-duty fleet needs
For Technical Support:
· Schedule consultation with applications engineering team
· Request failure analysis on problematic bushing patterns in your fleet
· Access installation training resources for your service personnel
