Mack Truck Cab Mount Bracket OEM 20975430: In-Depth Guide & Selection Tips

In heavy-duty, long-haul operations and on rough roads, the cab is not only the driver’s workspace—it is also a core carrier of NVH performance and comfort. The cab suspension system of Mack Trucks works through a coordinated mechanism of “support + isolation + limit control,” keeping shocks, vibration, and noise between the frame and the cab within a reasonable range. As a critical connection component between the frame and the cab, the Cab Mount Bracket directly determines cab posture stability, ride comfort, and durability of surrounding parts.

---

1. The Role of Mack Cab Mount Bracket in the Cab Suspension System

A cab suspension system typically consists of brackets/mounts, rubber elastomers, limit structures, fasteners, and related hardware. The core value of a cab mount bracket is a four-in-one function: connection, load-bearing, vibration isolation, and stability.

1) Supporting Cab Weight and Connecting to the Frame

• Clear load path: Cab weight (static load) and road shocks (dynamic loads) are transferred to the frame through the cab mount/bracket, forming a stable mechanical loop.

• Geometric positioning is critical: Mounting hole positions, center distances, and metal structure stiffness define the “reference position” of the cab relative to the frame, helping prevent misalignment that can cause door-frame deformation, poor sealing, and noise.

2) Absorbing Road Impacts and Engine Vibration

• Road impacts (potholes, speed bumps, gravel roads) create high-amplitude transient acceleration. The rubber elastomer in the bracket converts impact energy into heat through compression/shear deformation, reducing peak shock transmitted to the cab.

• Powertrain vibration and frame torsion can be transmitted to cab connection points. Rubber’s internal damping significantly attenuates mid-to-high frequency vibration, reducing “hand/foot numbness” felt at the steering wheel, seat, and pedals.

3) Reducing NVH

• NVH results from excitation sources (road/engine/driveline) and the structural transmission path. The cab mount bracket is a vibration isolator located on a key transmission path, helping:

• Reduce structure-borne noise

• Suppress resonance amplification at specific speeds/RPM (booming, shaking)

• Stabilize the cab interior acoustic environment and improve long-haul comfort and fatigue tolerance

4) Improving Ride Comfort and Vehicle Stability

• Comfort is not only about being “softer,” but also about controlled displacement. Proper hardness and damping allow the cab to avoid excessive rocking over bumps while preventing harsh shock transfer to the human body.

• Vehicle stability shows up as more stable cab posture, more controllable roll in turns, and reduced pitch during emergency braking/acceleration—improving driver confidence and control.

5) Importance Under Heavy Loads and Long-Haul Duty Cycles

• Heavy-duty long-haul means high mileage + high vibration cycles + large temperature swings + dust/rain/snow exposure. If fatigue resistance and bonding strength are insufficient, early debonding, cracking, and looseness can occur, leading to:

• Escalating cab noise and vibration

• Secondary damage at frame/cab connection points (hole wear, bracket deformation)

• More frequent repairs and higher downtime costs
  Therefore, a cab mount bracket designed for heavy-duty conditions—high damping + long fatigue life + reliable corrosion protection—is a priority for aftermarket purchasing.

---

2. Overview of OEM 20975430

1) OE Number and Common Search Formats

• Standard format: 20975430

• Common search formats: 20975430 cab mount / 20975430 cab mount bracket / 20975430 cab mount assembly / Mack 20975430

2) Replacement & Compatibility

In the aftermarket and across supply chains, cross references and supplier brand numbers often appear for “same-structure / same-platform” parts. Common replacements/cross references related to 20975430 include:

• 20975428

• 25172461 / 25176534

• 30QS4525AM / 30QS4525M

• 30QS4557AM / 30QS4557M

Note: Different numbers may correspond to different versions of the same assembly (revision, left/right, material upgrades, supplier-brand numbers), or different mounting points on similar platforms. Final confirmation is recommended by truck model/year, mounting position, key dimensions, and hole pattern. For distributor trial orders and channel stocking, Low MOQ is supported, and Neutral Packaging is available for easier multi-market distribution and private label management.

3) Why It Fits Mack Trucks

• Under heavy-duty and long-haul conditions, Mack platforms require the cab mount bracket to meet:

• Adequate load capacity (static + dynamic)

• Effective isolation (damping and appropriate hardness)

• High fatigue life (high-cycle shear/compression)

• Corrosion and weather resistance (salt spray, mud/water, temperature swings)

4) Typical Mounting Locations

Depending on truck structure, the cab mount bracket may be located at:

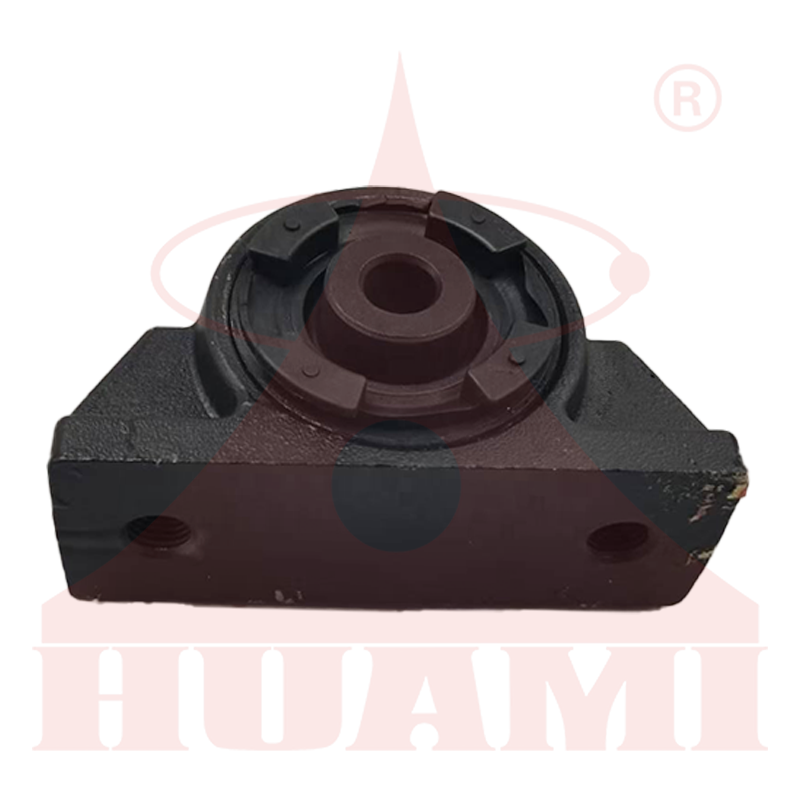

• Front cab mounting point: more sensitive to road impacts and steering inputs

• Middle cab mounting point: focuses on frame torsion and posture stability

• Rear cab mounting point: focuses on longitudinal impacts and braking pitch control

Final position depends on the truck design and parts catalog.

---

3. Structure & Materials

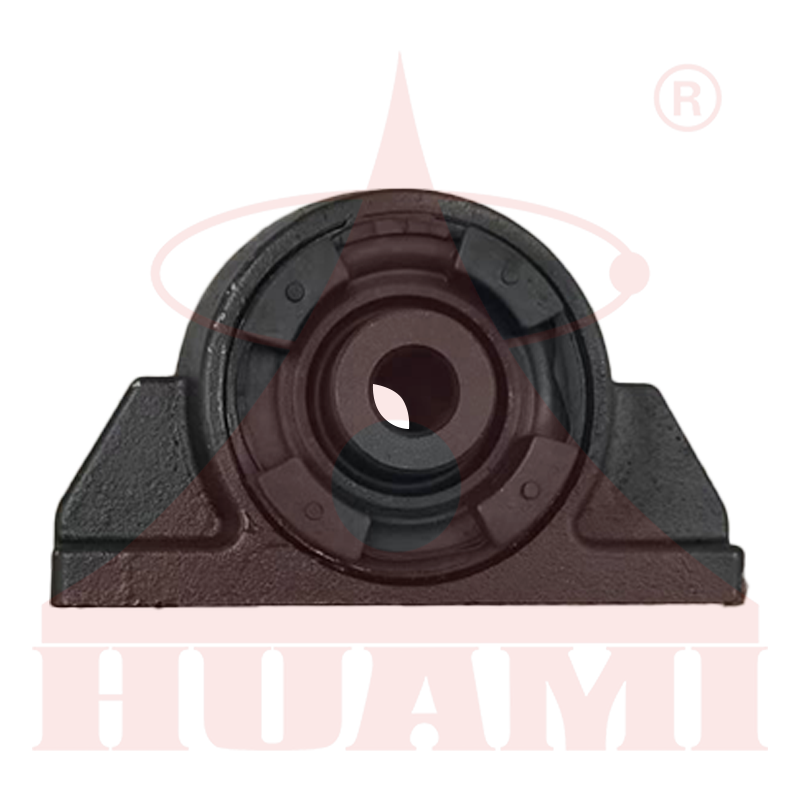

1) Construction: Metal Bracket + High-Damping Rubber Elastomer

A typical cab mount bracket/assembly includes:

• Steel bracket / housing: provides stiffness, mounting holes, and structural strength

• Elastomer (rubber): provides isolation, cushioning, and controlled displacement

• (Optional) limit structures/bushings/washers: control extreme displacement and prevent “bottoming-out” impact

2) Rubber Material Options: NR / NBR / EPDM, etc.

Huami New Material commonly selects compound systems based on working conditions:

• NR (Natural Rubber): good elasticity and dynamic performance for balanced isolation and load-bearing

• NBR (Nitrile Rubber): better oil resistance for oily environments or contact with lubricants

• EPDM: strong weather/ozone resistance and good high/low temperature performance for outdoor and large temperature-swing conditions

Material selection is not only about the polymer type—more critical is the compound formulation system (fillers, plasticizers, curing system, anti-aging package) matched to target performance.

3) Shore A Hardness Range and Performance Impact

• A typical hardness window may cover Shore A 45–80 (defined by vehicle and mounting-point requirements).

• Lower hardness: better isolation, larger displacement, lower load margin

• Higher hardness: stronger load/posture control, potentially reduced isolation and harsher impact feel
  Best practice is to match hardness to mounting position and load spectrum, balancing “displacement control / damping / load capacity.”

4) Fatigue, Shear, Oil, and Weather Resistance

Cab mount elastomers endure combined compression and shear over long duty cycles. Key performance points include:

• Fatigue life: prevent crack initiation and propagation under cyclic loads

• Shear resistance: resist frame torsion and lateral cab movement

• Oil/chemical resistance: prevent swelling, softening, and strength loss (NBR compounds excel here)

• Weather/ozone/temperature resistance: prevent surface checking, hardening, and loss of elasticity (EPDM compounds excel here)

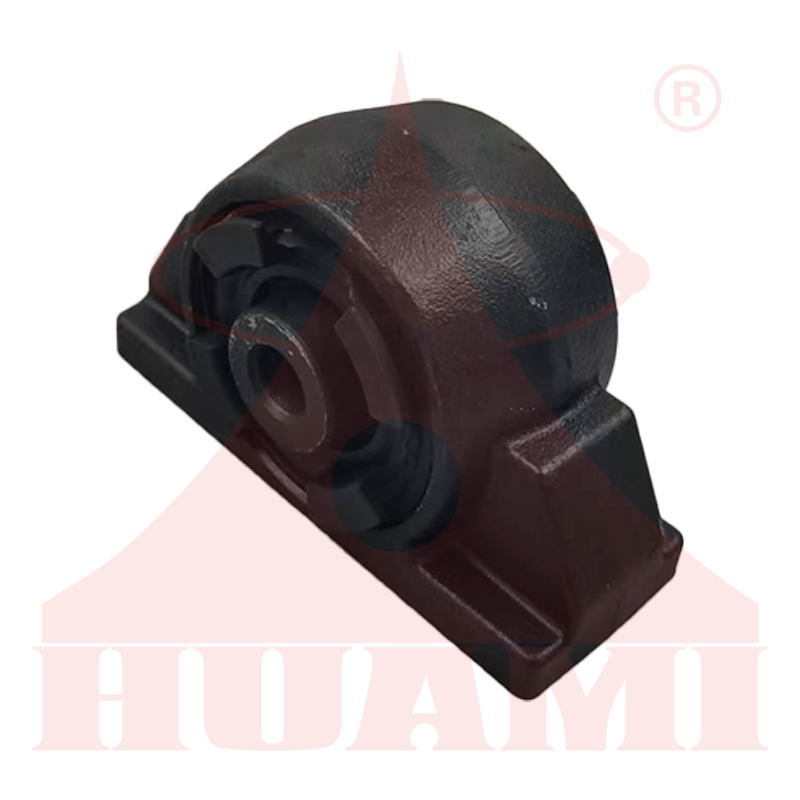

5) Corrosion Protection for Metal Components

• Typical options: powder coating, e-coating, zinc plating, Dacromet, etc. (selected per customer requirement and salt-spray rating)

• Corrosion protection quality affects structural retention, fastener reliability, and serviceability during later removal/installation.

6) Why Vulcanization Bonding Matters for Long Service Life

Cab mount brackets are rubber-to-metal composites. Bonding durability depends on:

• Metal surface preparation and cleanliness

• Bonding system matching (primer/topcoat and compound compatibility)

• Cure profile control (temperature, time, pressure)
  Insufficient bonding strength can lead to interface separation, looseness/noise, loss of isolation, and potentially safety risk under heavy impacts.

---

4. Common Failure Modes & Replacement Signals

1) Cab Rocking, Tilt, or Abnormal Noise

• Cab shows obvious side-to-side sway or fore-aft pitch during start/stop or over bumps

• “Squeak/clunk” noises during low-speed turns or torsional road surfaces

• Visible cab posture misalignment or inconsistent left/right height

2) Noticeably Increased Vibration While Driving

• More shaking in specific speed ranges

• Increased vibration felt at steering wheel, seat, and pedals

• Worse NVH and quicker driver fatigue

3) Abnormal Cab-to-Frame Gaps

• Gap grows/shrinks, local interference and rubbing appear

• Limit structures frequently “hit hard,” producing metallic bottoming-out feel

4) Rubber Aging, Cracking, or Debonding

• Surface checking, hardening, crumbling

• Visible separation gap between rubber and metal

• Oil contamination causes swelling/softening and strength reduction

5) Quick Ways to Judge Whether Replacement Is Needed

• Visual inspection: cracks, debonding, deformation, metal corrosion

• Pry test: with safe support, pry the mount point lightly; excessive movement or poor rebound indicates risk

• Left-right comparison: significant asymmetry often indicates one-side failure

• Road test validation: pass over speed bumps/rough road; identify whether noise/rocking concentrates near a specific mount area

Recommendation: Once obvious looseness or debonding appears, replace promptly to avoid secondary damage to mounting holes and seats.

---

5. Installation & Maintenance Guide

1) Removal and Installation Precautions

• Ensure the vehicle/cab is safely supported to prevent sudden cab drop hazards

• Mark positions before removal (left/right, washer order, limit direction)

• Inspect related fasteners and bushings; replace together if necessary

2) Centering Installation and Avoiding Rubber Pre-Stress

• Ensure natural alignment between bracket and holes; avoid forcing bolts in

• Rubber pre-stress significantly reduces fatigue life and can cause early cracking/noise

3) Bolt Torque

• If angle tightening or one-time-use bolts apply, follow the specification strictly

4) Periodic Inspection & Maintenance

• Inspect cab mounts at each service

• Check items: cracks/debonding/corrosion/gap/noise/fastener tightness

• In snow/salt regions, pay extra attention to corrosion and rubber aging

5) How to Extend Service Life

• Avoid long-term overloading and harsh impacts

• Repair looseness and hole wear at frame/cab connections in time

• Choose oil-resistant systems (e.g., NBR compound solutions) for oily environments

• Set replacement (same axle/side/system) helps maintain posture consistency and stable NVH

---

6. Manufacturing Advantages of Hebei Huami New Material Technology Co., Ltd.

As a long-term supplier of commercial-vehicle rubber-metal components,Huami New Material emphasizes a closed-loop capability of “compound formulation + process + testing” for cab suspension and heavy-duty damping applications, delivering more stable supply and batch consistency. For export and aftermarket channels, Neutral Packaging and Low MOQ trial orders are supported to reduce new-item launch and inventory pressure.

1) 30 Years of Rubber and Rubber-Metal Manufacturing Experience

• Deep expertise in rubber-metal molding, bonding, and durability verification

• Working-condition understanding aligned with heavy-duty, long-haul, and rough-road realities

2) Multi-Brand Commercial Vehicle Application Experience

• Coverage includes applications related to Volvo Trucks, Mercedes-Benz, Scania, MAN, enabling faster compound/structure matching across platforms and duty cycles.

3) Certifications and Compliance Capability

• IATF16949 quality management system

• Relevant certification support from TÜV Rheinland

• AEO Advanced Certification (customs compliance and supply chain reliability)

4) In-House Rubber Compound R&D

• Compound solutions for “high damping, fatigue resistance, weather/oil resistance” targets

• Customizable Shore A hardness and damping window to suit cab suspension and heavy-duty conditions

5) Precision Tooling and Automated Production for Higher Consistency

• Tooling precision and process control reduce batch variation

• Automation and standardized processes improve supply stability for distributor stocking and fleet maintenance

6) Full-Process Quality Inspection & Durability Validation

• In-process/outgoing tests: hardness, tensile, tear, compression set, bonding strength

• Validation tests: fatigue life, weathering, oil resistance, high/low temperature performance

• Ensures both “spec compliance” and “long-term reliability” are verifiable

7) OEM/ODM Support, Small-Batch Customization, Stable Lead Time

• Development by drawings/samples, cross-reference compatibility, structure and compound optimization

• Low MOQ support: enables trial validation before scaling volume

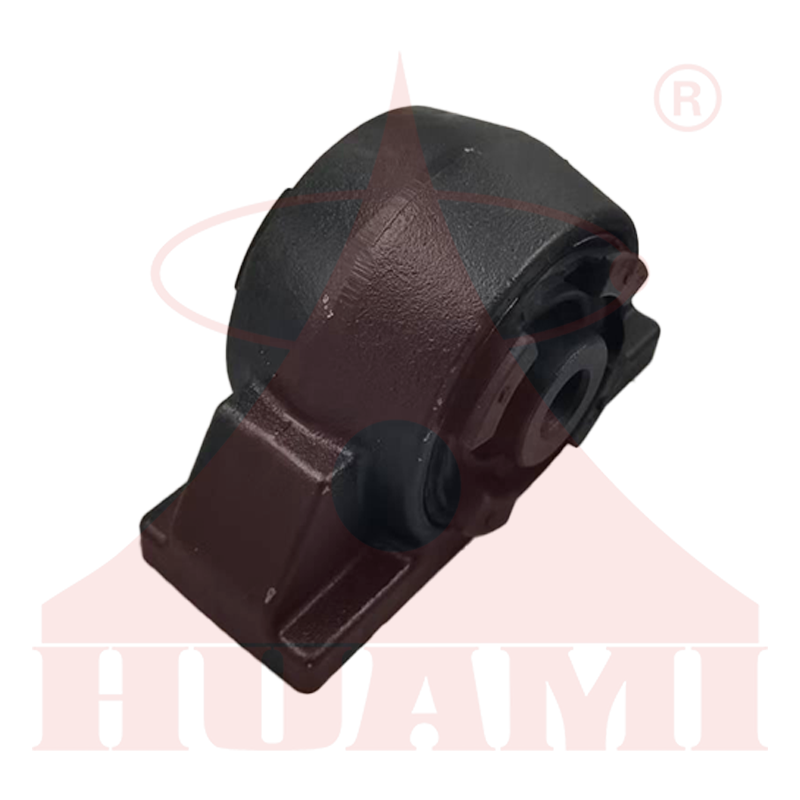

• Neutral Packaging: cartons/labels without branding to fit multi-market distribution and private label needs

• Stable lead time for continuous supply and rolling replenishment

For inquiry efficiency, prepare: truck model/year, mounting position, OE number, photos (front/side/hole details), key dimensions, and duty requirements (oil resistance, cold resistance, higher damping, etc.).

---

7. Parameter & Specification Table

---

8.FAQ

Q1: What is OEM 20975430 for Mack trucks?
A1: OEM 20975430 commonly refers to a rubber-metal cab mount bracket/cab mount assembly used in the cab suspension system to support the cab and isolate vibration.

Q2: Which part numbers can replace 20975430?
A2: Common cross references include 20975428, 25172461, 25176534, 30QS4525AM, 30QS4525M, 30QS4557AM, and 30QS4557M. Final fitment should be confirmed by mounting position and dimensions.

Q3: Why are there multiple cross reference numbers for the same part?
A3: They may come from different supplier brand numbers, shared platforms, revision versions, or left/right and front/rear mounting differences. Confirm using part photos and key dimensions.

Q4: What are the symptoms of a failing cab mount bracket?
A4: Typical symptoms include excessive cab shake, abnormal noise, cab tilt, increased vibration, unusual cab-to-frame gaps, and visible rubber cracking or debonding.

Q5: Where is this type of cab mount bracket installed?
A5: It may be installed at front, middle, or rear cab mounting points depending on the truck structure. Confirm the position and the direction of related washers/limit parts before replacement.

Q6: What is the difference between NR, NBR, and EPDM for cab mounts?
A6: NR offers strong dynamic performance and balanced isolation; NBR provides better oil resistance; EPDM offers superior weather and ozone resistance. Choose based on working conditions (oil exposure/temperature swings/salt spray).

Q7: Is higher Shore A hardness always better?
A7: No. Higher hardness improves load and posture control but may reduce isolation; lower hardness improves isolation but allows more displacement. Match hardness to the mounting point load spectrum and NVH targets.

Q8: What should be noted during installation?
A8: Proper alignment is crucial to avoid rubber pre-stress. Tighten to the specified torque (per service manual) and inspect mounting holes and related hardware.

Q9: What is the typical service life?
A9: It depends on duty cycle, load, road conditions, temperature swings, and oil contamination. Replace promptly when debonding or obvious looseness occurs to prevent secondary damage.

Q10: Do you offer neutral packaging and low MOQ?
A10: Yes. Neutral packaging supports distribution and private label needs, and low MOQ trial orders are available for validation before scaling volume.
