BPW Bushing 0203159800 | BPW Suspension Bushing Supplier

1. Role of the BPW Suspension Bushing

In BPW mechanical suspension systems on trailers and semi trailers, the BPW suspension bushing (OEM: 0203159800) is usually installed at:

• Leaf spring eyes

• Rocker arm / hanger pivot points

• Torque rod or trailing arm connections

It looks like a simple rubber cylinder, but it plays several critical roles.

1.1 Absorbing Axle Vibration and Impact

During operation, the vehicle experiences:

• High-frequency vibration from uneven roads

• Sudden impacts from potholes, curbs and speed bumps

• Torsional loads from braking and acceleration

The rubber layer of the BPW bushing works in shear and compression, converting impacts into heat and damping out vibration. This:

• Protects the chassis and welds from fatigue

• Reduces cargo damage and improves freight safety

• Lowers vibration transmitted to the tractor and driver

1.2 Keeping Suspension Geometry Stable

In a BPW suspension, the bushing functions both as a pivot and as a positioning element:

• It controls the movement range of rocker arms and torque rods

• It keeps the relative position between axle and frame stable

• It helps maintain design values for axle spacing, track and axle alignment

When the bushings are in good condition, you get:

• Stable straight-line running without wandering

• More even tire loading and reduced irregular wear

• Better brake stability, with axles tracking correctly

1.3 Reducing Metal Wear and Improving Ride Smoothness

Without a rubber-metal bushing, pivot points would be metal-to-metal:

• Hanger and rocker arm holes would wear and become oval

• Pins and torque rods would develop play and fatigue cracks

• The suspension would generate loud knocking and harsh impacts

The Rubber-Metal Bushing between the metal parts:

• Makes rocker arm rotation smoother

• Distributes loads more evenly in the suspension brackets

• Improves ride comfort both in laden and unladen conditions

1.4 Providing Support and Cushioning Under Heavy Loads

BPW mechanical suspensions (such as W / BW / GW series) are designed for medium to heavy axle loads and are widely used in long-haul, bulk and off-road applications.

Under these heavy-duty conditions, the BPW suspension bushing must:

• Sustain long-term high loads plus constant vibration

• Control axle movement in longitudinal and lateral directions

• Provide both structural stiffness and elastic damping

That is why quality BPW torque rod bushings and spring eye bushings are so important for axle alignment and durability.

---

2. OEM: 0203159800 Product Overview

2.1 Application in BPW Suspension Systems

OEM 0203159800 is a widely used BPW suspension bushing for:

• BPW mechanical suspension systems on trailers and semi trailers

• Leaf spring eyes, hanger brackets, rocker arm pivots and torque rod joints

• Vehicles equipped with BPW axles in logistics, container, tipper and general cargo trailers

You will often find this reference in:

• Single or multi-axle BPW mechanical suspension kits

• Semi trailers, drawbar trailers and container chassis using BPW axles

2.2 Typical Dimensional Characteristics

In many parts catalogues, the BPW bushing 0203159800 has typical dimensions:

• Inner diameter (ID): 30 mm

• Outer diameter (OD): 60 mm

• Length: 72 mm

• Construction: steel + rubber (rubber-metal bushing)

This makes it suitable as:

• A bushing for 30 mm torque rod pins or spring eye pins

• A pivot bushing in 60 mm bores of hangers and rocker arms

Note: Exact dimensions for a particular trailer should always be confirmed against drawings or sample parts.

2.3 Cross References and Compatibility (Placeholders)

Depending on the catalogue, 0203159800 can appear with alternative or related references, for example:

• 0203169800, 0203159000 (BPW-related numbers)

• 02.031.59.80.0 / 02.031.69.80.0 (BPW material number formats)

• Aftermarket cross references such as 044.131-00A, FB40784, SP070.202 (brand dependent)

It is also commonly used on trailers from major European OEMs that use BPW axles. When planning a semi trailer bushing replacement, it is recommended to verify:

• OEM number on the old bushing

• Measured dimensions (30 × 60 × 72 mm)

• Actual position in the BPW suspension layout




•

---

3. Structure and Materials

3.1 Inner Sleeve, Outer Shell and Rubber Layer

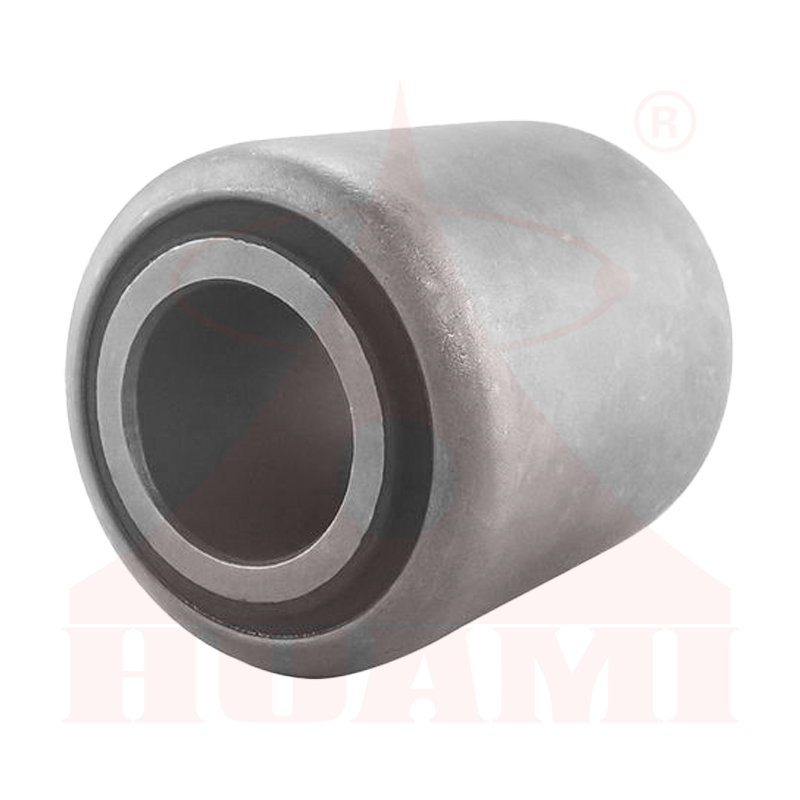

The BPW bushing 0203159800 is a classic Rubber-Metal Bushing:

• Inner sleeve

• Machined steel tube with 30 mm bore

• Clamped by a bolt to the bracket or torque rod, carrying shear and torsion loads

• Outer shell

• Precision-turned steel sleeve with 60 mm outer diameter

• Press-fitted with interference into the hanger, rocker arm or spring eye housing

• Rubber damping layer

• Softer stiffness in the main vibration direction

• Higher stiffness laterally and in torsion, to maintain axle guidance

• Bonded between inner sleeve and outer shell

• Geometry (voids, slots, local thickening) is designed to give:

3.2 Rubber Compounds from Hebei Huami New Material

For heavy-duty BPW suspension applications, Hebei Huami New Material uses self-developed rubber compounds, such as:

• NR (Natural Rubber) – excellent dynamic properties and fatigue life, ideal for high-frequency vibration

• NBR (Nitrile Rubber) – good resistance to oil and grease, suitable for contaminated under-body environment

• EPDM – excellent ozone and weather resistance, suitable for trailers stored outdoors and in extreme climates

Available hardness ranges (Shore A):

• Standard version: approx. 65–75 Shore A

• High-damping version: slightly softer for improved ride comfort and NVH

• Heavy-duty version: approx. 70–80 Shore A for mining, over-load and bad road conditions

3.3 Wear, Oil and Weather Resistance

With the right compound and process control, the BPW suspension bushing offers:

• Operating temperature: approx. –40 °C to +100 °C

• Good compatibility with gear oil, grease and road contaminants

• High resistance to crack growth under repeated bending and torsion

• Excellent ozone and UV resistance for long-term outdoor use

3.4 Corrosion Protection of Metal Parts

The metal inner and outer sleeves are treated to ensure long-term corrosion protection:

• Shot blasting / sand blasting for a clean, adhesive surface

• Phosphate conversion coating, e-coat or Zn-Ni plating for anti-corrosion

• Optional enhanced salt-spray performance for coastal and high-salt environments

3.5 Vulcanization and Rubber-Metal Bonding

Hebei Huami uses professional rubber-metal bonding technology:

• Dedicated primer and cover adhesive system applied to the metal sleeves

• Hot vulcanization under accurately controlled temperature, time and pressure

• Routine bonding strength tests to avoid debonding or voids

This high-quality bonding is essential for long-life performance of BPW bushing 0203159800 under heavy shear and torsion loads.

---

4. Typical Operating Conditions for BPW Suspensions

BPW mechanical suspensions are widely used because of their robustness and simplicity. Typical working conditions include:

• Long-haul highway logistics with high mileages

• Regional distribution and cold-chain with frequent stops and brake cycles

• Construction sites, mining areas and off-road operations with heavy loads and rough surfaces

Under such conditions, the BPW suspension bushing has to:

• Survive high-frequency vibration plus large-amplitude impacts

• Maintain axle position relative to the frame over a long service life

• Retain bonding and corrosion resistance under mud, dust and salt exposure

Hebei Huami optimizes BPW torque rod bushing and spring eye bushing designs specifically for these harsh conditions, ensuring:

• Controlled rubber deformation without collapsing

• Metal sleeves that resist cracking or permanent deformation

• Better NVH behavior than low-quality aftermarket parts

---

5. Common Failures and Symptoms (Key Section)

When the BPW suspension bushing 0203159800 is worn or damaged, it directly affects safety and operating cost.

5.1 Hanger Noise, Vibration and Rocker Arm Play

Typical symptoms:

• Knocking or clunking noise when driving over bumps and speed humps

• Noticeable vibration between frame and axle

• Visible play at rocker arm or hanger pivot points

Main causes:

• Rubber layer fatigue and hardening, loss of elasticity

• Relative movement between inner and outer sleeves

• Bushing rotating or moving inside the housing

5.2 Cracks, Debonding and Off-Center Wear

Visual inspection may show:

• Radial or network-like cracks on the rubber surface

• Debonding and air gaps between rubber and metal

• Inner sleeve clearly off-center, with uneven contact and wear

In the long run this will lead to:

• Accelerated wear of torque rod pins or spring eye pins

• Changes in suspension geometry and axle height difference

• Off-center wear and abnormal tire shoulder wear

5.3 Vehicle Pulling and Axle Misalignment

If bushings on one side wear more than the other:

• The vehicle may need constant steering correction at highway speeds

• The trailer may show mild “snaking” during braking or acceleration

• Tire patterns show inner or outer shoulder wear and “saw-tooth” patterns

This indicates:

• Axle centerline is no longer correctly aligned with the frame

• Multiple axles do not track properly in multi-axle trailers

• Braking stability and tire life are compromised

5.4 How to Judge When BPW Bushings Need Replacement

Simple inspection procedure:

1. Visual check

• Raise the trailer and remove the relevant wheels

• Use a lamp to inspect the bushing: look for cracks, debonding, missing rubber or an off-center sleeve

2. Pry-bar test

• Use a pry bar between hanger and rocker arm or between torque rod and bracket

• If there is visible play, movement or distinct knocking at the bushing, it is seriously worn

3. Road test

• Drive slowly over speed bumps and listen for under-body impacts

• At highway speed, check if the trailer pulls, wanders or feels unstable

• Inspect tire wear across all axles

If any of the following conditions are met, a semi trailer bushing replacement should be scheduled:

• Severe cracking or debonding of the rubber

• Significant play at hanger / rocker arm pivots

• Combination of tire irregular wear and vehicle pulling

---

6. Installation and Maintenance Guidelines

The following are general guidelines. Always follow the official BPW service manual and vehicle OEM instructions.

6.1 Removal – Key Steps and Safety

1. Park the trailer on level ground, apply the parking brake and chock the wheels

2. Support the frame safely with stands or lifting equipment

3. Loosen U-bolts or connecting bolts and remove the rocker arm / torque rod assembly

4. Use a hydraulic press with suitable tooling to press the old bushing out of the housing

5. Clean rust and old rubber from the housing, and check for deformation

Avoid:

• Cutting the bushing out with excessive flame heating

• Hammering the bushing violently with a sledge hammer, which can deform the housing

6.2 Press-In Direction and Alignment

• Check if the new bushing has orientation marks, grooves or arrows

• Align the rubber voids and marks according to load direction and drawings

• Use a press to install the bushing slowly and steadily

• Ensure that inner and outer sleeves are kept coaxial, without tilt

• Confirm that the shoulder and housing faces are fully seated

6.3 Torque Requirements and Static Preload

After reassembly:

1. Refit rocker arms, torque rods or spring eyes to the frame and axle

2. With the suspension at normal ride height (wheels on the ground or simulated load), tighten all bolts with a torque wrench according to the specified torque values (placeholders):

• Hanger / rocker arm fixing bolts: XXX–XXX Nm

• Torque rod joint bolts: XXX–XXX Nm

3. This ensures that the rubber in the BPW bushing is close to a zero-twist condition at static height, which:

• Avoids pre-loaded shear in the rubber at rest

• Significantly extends bushing fatigue life

6.4 Re-Torque and Inspection Intervals

Recommended practice:

• After new suspension installation or overhaul, perform a first re-torque after the initial loaded run

• Then inspect suspension bolts and bushings every 50,000 km or 6 months under normal operation

• For mining or over-loaded applications, shorten the interval to 20,000–30,000 km

6.5 Tips to Extend Bushing Life

• Avoid long-term over-loading, especially on unpaved roads

• Protect bushings from welding heat during chassis repairs

• Repair damaged hangers and housings promptly to maintain correct fits

• After a semi trailer bushing replacement, check axle alignment and adjust if necessary

---

7. Manufacturing Advantages of Hebei Huami New Material

Hebei Huami New Material Technology Co., Ltd. was founded in 1998 in Xingtai, Hebei, China. It is a high-tech enterprise listed on the Beijing Stock Exchange and recognized as a national “Specialized and New – Key Little Giant” enterprise.

7.1 Nearly 30 Years of Rubber Product Experience

The company has been deeply involved in rubber and engineering plastics for almost three decades, supplying:

• Automotive OEMs and Tier-1s

• High-speed rail and rail transit

• Construction and petroleum machinery

• Aerospace and other demanding industries

This experience supports the development and manufacture of suspension bushings, torque rod bushings and other rubber-metal components to OEM standards.

7.2 Certifications and Export Capability

Hebei Huami has obtained multiple management system certifications, including:

• ISO9001, IATF16949, ISO14001, ISO45001, GJB9001C, AS9100D

• AEO advanced certification from China Customs for efficient cross-border logistics

The company supplies more than 40 enterprises worldwide, with stable quality and reliable delivery performance.

7.3 In-House Rubber Formulation and Heavy-Duty Options

For BPW suspension bushing 0203159800, Hebei Huami can offer:

• Different hardness levels for standard, high-damping or heavy-duty versions

• Compounds tailored for mining, cold climate, coastal regions or long-haul fleets

• Structural options such as thicker rubber layers or reinforced sleeves

7.4 Precision Tooling and Dimensional Consistency

• In-house tool design and mold manufacturing

• Tight control of bore, OD, length and concentricity tolerances

• Automated molding, trimming and inspection lines

• High batch-to-batch consistency, reducing installation and alignment issues for customers

7.5 Complete Quality and Durability Testing

Hebei Huami’s laboratory can perform:

• Hardness, tensile strength and tear strength tests

• Compression set and rubber-metal adhesion tests

• Salt-spray, oil resistance and thermal cycling tests

• Dynamic fatigue and heavy-duty durability simulations

On this basis, the company can provide test reports and traceability for BPW bushing 0203159800, helping distributors and fleets build trust in their markets.

---

8. Technical Specification Template (for 0203159800)

The following table is a commonly used template based on typical catalogue data. Exact values should be confirmed with drawings and customer requirements.

---

9. FAQ

Q1. Which vehicles use BPW bushing 0203159800?
A1. BPW suspension bushing 0203159800 is used on many trailers and semi trailers equipped with BPW mechanical suspensions, typically at leaf spring eyes, hanger brackets or rocker arm pivots. Exact application depends on the BPW axle and suspension type plate.

---

Q2. How can I confirm compatibility of 0203159800 with my BPW suspension?
A2. Check the OEM number stamped on the old bushing, measure the dimensions (30 × 60 × 72 mm) and verify the mounting location in the BPW suspension. You can also send photos and BPW axle type plate information to Hebei Huami New Material for confirmation.

---

Q3. What is the typical service life of a BPW suspension bushing?
A3. Under normal load and road conditions, a BPW bushing such as 0203159800 can run for several hundred thousand kilometers. In mining, off-road or overloaded conditions, the life will be shorter, so regular inspection and timely semi trailer bushing replacement is recommended.

---

Q4. What should I pay attention to during semi trailer bushing replacement?
A4. Always use a hydraulic press for removal and installation, follow the orientation marks, tighten bolts to the specified torque at normal ride height, and check axle alignment afterward. Avoid hammering bushings or heating them excessively, as this can damage both bushings and housings.

---

Q5. What are the advantages of Hebei Huami New Material BPW bushing 0203159800?
A5. Hebei Huami New Material uses in-house rubber compounds, precision tooling and automotive-grade quality systems (including IATF16949 and AEO certification) to produce BPW suspension bushings with high durability, stable dimensions and options for heavy-duty or high-damping versions.

---

Q6. Can BPW bushing 0203159800 be customized for special applications?
A6. Yes. Hebei Huami can customize hardness, rubber formulation and geometry for special applications such as mining trucks, cold climates or coast-line operations, and can provide private label packaging for distributors.

---

Q7. Is regular lubrication required for this BPW bushing?
A7. No. BPW rubber-metal bushings like 0203159800 are designed as maintenance-free, non-grease components. However, it is important to regularly inspect the surrounding hangers, torque rods and bolts for corrosion or looseness.

---

Q8. Does long-term parking accelerate bushing aging?
A8. Long-term outdoor parking in strong sunlight, high temperatures or corrosive environments can accelerate rubber aging. For trailers parked for long periods, we recommend periodic movement, good ventilation and, if necessary, using versions with enhanced weather resistance.
